INA ZKLF50140-2Z-XL
INA

INA ZKLF50140-2Z-XL

loading
INA
Email Print

ZKLF50140-2Z-XL

INA ZKLF50140-2Z-XL ZKLF-2Z Axial Angular Contact Ball Bearing, 50 mm Dia Bore, 140 mm OD, 54 mm W, 60 deg, 250000 N Load

  • Item#: ZKLF50140-2Z
  • Mfr#: ZKLF50140-2Z-XL
  • UPC: 03537336837
  • Double direction
  • X-life design
  • Minimal gap seal on both sides
  • 125000 N dynamic/250000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

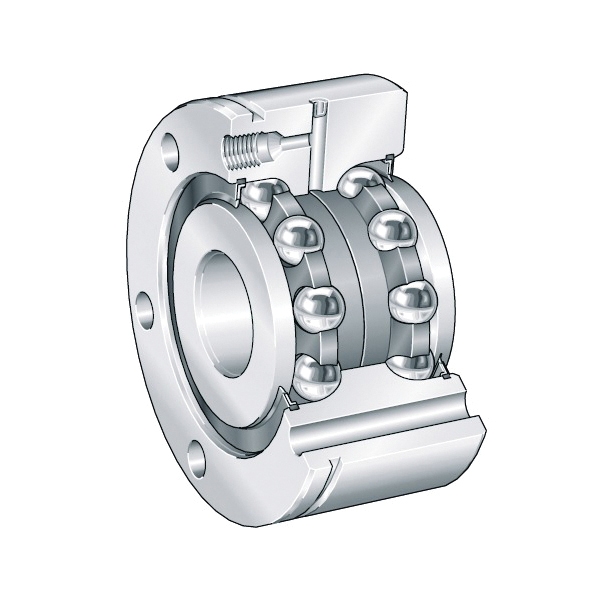

Double-direction axial angular contact ball bearings are precision bearings without self-retention and with restricted tolerances to class SP. They comprise solid-shaft locating washers, spacer rings, housing locating washers and ball and cage assemblies with solid brass cages. The bearing parts are matched to each other and can be fitted separately, but must not be interchanged with parts from bearings of the same size.

INA Axial Angular Contact Ball Bearing, Series: ZKLF-2Z, 50 mm Bore, 140 mm OD, 54 mm Width, 60 deg Contact Angle, Double Seal Closure, 250000 N Load, Plastic Cage, 3500 rpm Maximum

SPECIFICATIONS

Series      :      ZKLF-2Z
Contact Angle      :      60 deg
Load Capacity      :      250000 N
Maximum Speed      :      3500 rpm
Outside Diameter      :      140 mm
Width      :      54 mm
