ZARN65125-TV-A

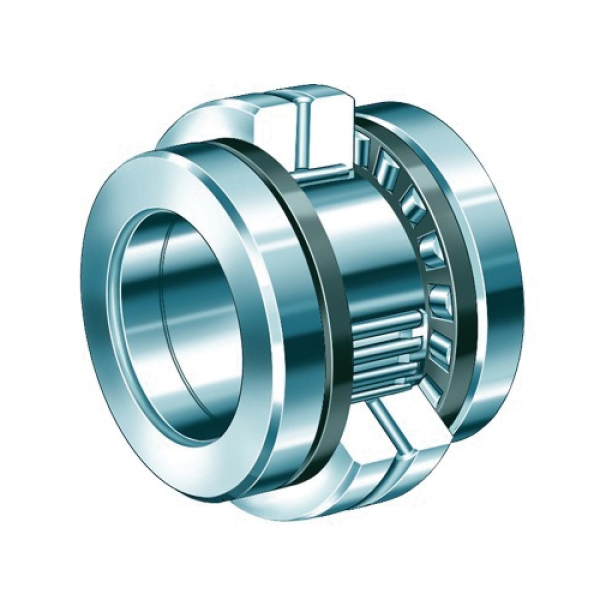

INA ZARN65125-TV-A Double Direction Needle Roller/Axial Cylindrical Roller Bearing, 65 mm Dia Bore, 125 mm OD, 82 mm W, 500000 N Load
- CP#:
- Item#: ZARN65125-TV
- Mfr#: ZARN65125-TV-A
- UPC: 03537329590
- Not for screw mounting
- Without fixing hole
- 172000 N dynamic/500000 N static radial, 54000 N dynamic/104000 N static axial
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, two shaft locating washers, an inner ring, a radial needle roller and cage assembly and two axial cylindrical roller and cage assemblies. The bearings are available in versions for screw mounting and not for screw mounting.
INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: Heavy ZARN, 65 mm Bore, 125 mm OD, 82 mm Width, 500000 N Load, Polyamide Cage, 900 rpm Grease/2600 rpm Oil Maximum, -30 to 120 deg C
SPECIFICATIONS
| Series | : | Heavy ZARN |
| Load Capacity | : | 500000 N |
| Maximum Speed | : | 900 rpm Grease/2600 rpm Oil |
| Outside Diameter | : | 125 mm |
| Width | : | 82 mm |
