ZARN3570-L-TV-A
INA ZARN3570-L-TV-A Double Direction Needle Roller/Axial Cylindrical Roller Bearing, 35 mm Dia Bore, 70 mm OD, 70 mm W, 148000 N Load
- CP#:
- Item#: ZARN3570-L-TV
- Mfr#: ZARN3570-L-TV-A
- UPC: 03537317140
- Not for screw mounting
- Without fixing hole
- L stepped shaft locating washer extended on one side
- 56000 N dynamic/148000 N static radial, 26000 N dynamic/47000 N static axial
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

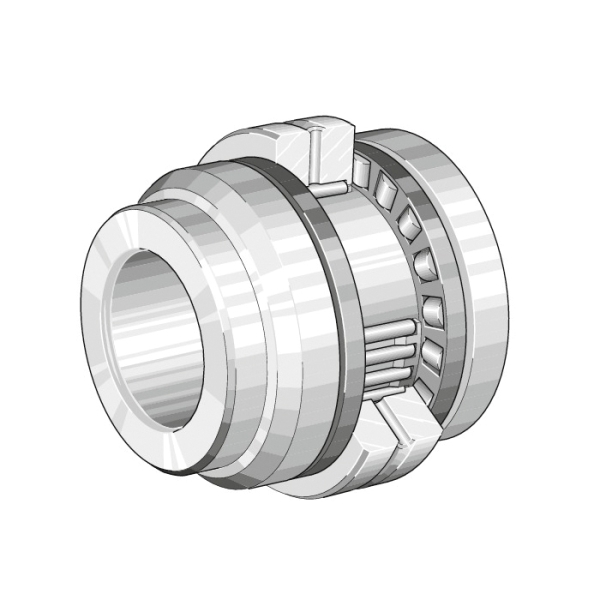

Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, two shaft locating washers, an inner ring, a radial needle roller and cage assembly and two axial cylindrical roller and cage assemblies. The bearings are available in versions for screw mounting and not for screw mounting.
INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: Light ZARN-L, 35 mm Bore, 70 mm OD, 70 mm Width, 148000 N Load, Polyamide Cage, 1700 rpm Grease/4800 rpm Oil Maximum, -30 to 120 deg C
SPECIFICATIONS
| Series | : | Light ZARN-L |
| Load Capacity | : | 148000 N |
| Maximum Speed | : | 1700 rpm Grease/4800 rpm Oil |
| Outside Diameter | : | 70 mm |
| Width | : | 70 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
