INA ZARF45130-L-TV-A
INA

INA ZARF45130-L-TV-A

loading
INA
Email Print

ZARF45130-L-TV-A

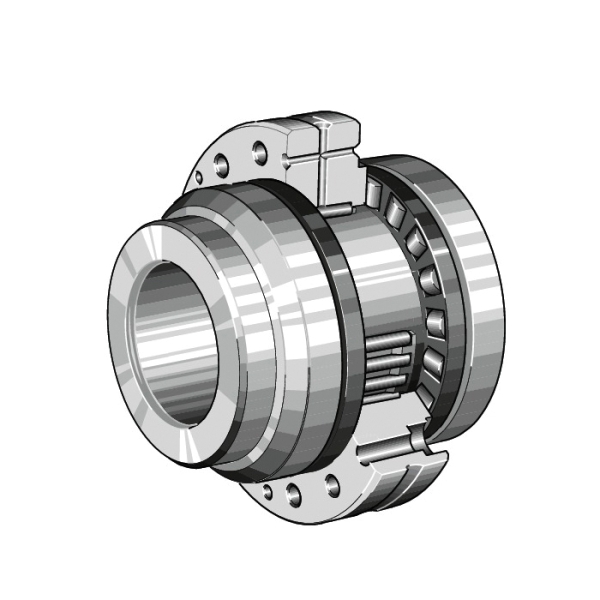

INA ZARF45130-L-TV-A Double Direction Needle Roller/Axial Cylindrical Roller Bearing With Fixing Hole, 45 mm Dia Bore, 130 mm OD, 103 mm W, 405000 N Load

  • Item#: ZARF45130-L-TV
  • Mfr#: ZARF45130-L-TV-A
  • UPC: 03537314038
  • For screw mounting
  • L stepped shaft locating washer extended on one side
  • 154000 N dynamic/405000 N static radial, 40000 N dynamic/82000 N static axial
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, two shaft locating washers, an inner ring, a radial needle roller and cage assembly and two axial cylindrical roller and cage assemblies. The bearings are available in versions for screw mounting and not for screw mounting.

INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: Heavy ZARF-L, 45 mm Bore, 130 mm OD, 103 mm Width, 405000 N Load, Polyamide Cage, 1150 rpm Grease/3300 rpm Oil Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      Heavy ZARF-L
Load Capacity      :      405000 N
Maximum Speed      :      1150 rpm Grease/3300 rpm Oil
Outside Diameter      :      130 mm
Width      :      103 mm
