- INA ZARF2590-TV-A
ZARF2590-TV-A
INA ZARF2590-TV-A Double Direction Needle Roller/Axial Cylindrical Roller Bearing With Fixing Hole, 25 mm Dia Bore, 90 mm OD, 60 mm W, 199000 N Load
- CP#:
- Item#: ZARF2590-TV
- Mfr#: ZARF2590-TV-A
- UPC: 03537314022
- For screw mounting
- 80000 N dynamic/199000 N static radial, 24300 N dynamic/41500 N static axial
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

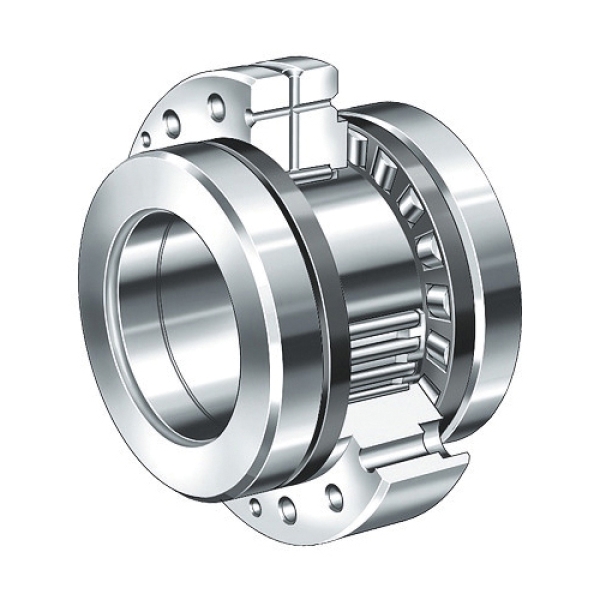

Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, two shaft locating washers, an inner ring, a radial needle roller and cage assembly and two axial cylindrical roller and cage assemblies. The bearings are available in versions for screw mounting and not for screw mounting.
INA Needle Roller/Axial Cylindrical Roller Bearing, Double Direction, Series: Heavy ZARF, 25 mm Bore, 90 mm OD, 60 mm Width, 199000 N Load, Polyamide Cage, 1400 rpm Grease/4900 rpm Oil Maximum, -30 to 120 deg C
SPECIFICATIONS
| Series | : | Heavy ZARF |
| Load Capacity | : | 199000 N |
| Maximum Speed | : | 1400 rpm Grease/4900 rpm Oil |
| Outside Diameter | : | 90 mm |
| Width | : | 60 mm |
