TME25-XL-N

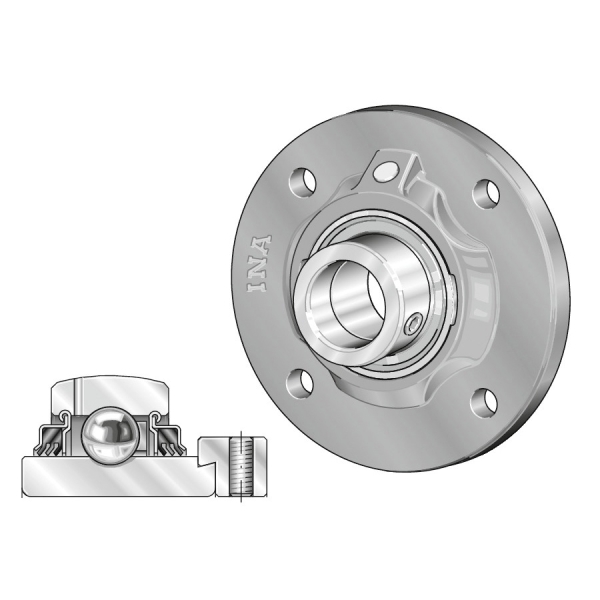

INA TME25-XL-N Flange Mount Housing Unit With Centering Spigot, For Use With GE25-KTT-B 14000 N Dynamic/7800 N Static Radial Insert Ball Bearing, 4-Bolt, 90 mm Bolt Circle Dia, Cast Iron
- CP#:
- Item#: TME25-N
- Mfr#: TME25-XL-N
- UPC: 03537313083
- Cast iron housings are single-piece units with high load carrying capacity
- Eccentric locking collar and T type seals
- X-life design
- Cast iron housing with undercut slot for end caps
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA housed bearing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other.
INA Flange Mount Housing Unit, Series: TME-XL, For Use With: GE25-KTT-B 14000 N Dynamic/7800 N Static Radial Insert Ball Bearing, Specifications: 4-Bolt, 90 mm Bolt Circle Dia, Cast Iron, 115 mm L x 44.5 mm W x 115 mm H Dimensions
SPECIFICATIONS
| Dimensions | : | 115 mm L x 44.5 mm W x 115 mm H |
| Series | : | TME-XL |
| Material | : | Cast Iron |
| Specifications | : | 4-Bolt, 90 mm Bolt Circle Dia |
| Suitable For Use With | : | GE25-KTT-B 14000 N Dynamic/7800 N Static Radial Insert Ball Bearing |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
