SL192315

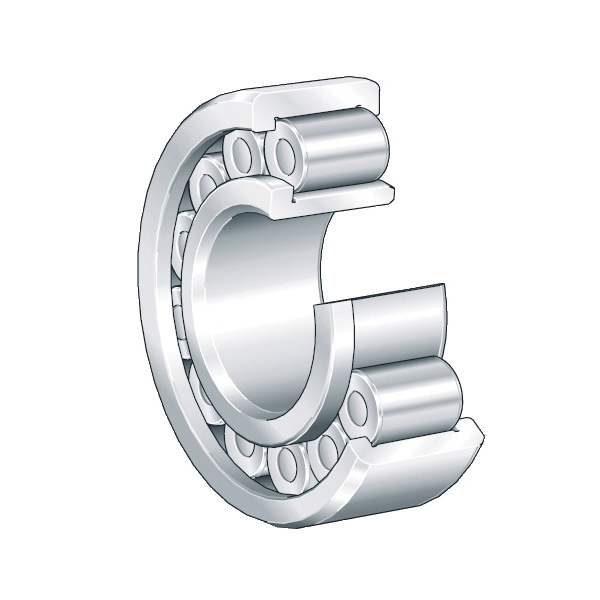

INA SL192315 Full Complement Semi-Fixed Cylindrical Roller Bearing, 75 mm Dia Bore, 160 mm OD, 1 Row, 55 mm W, 465000 N Load
- CP#:
- Item#: SL192315
- Mfr#: SL192315
- UPC: 03537312863
- Bearing arrangements are subjected to particularly high radial loads
- Not only very high radial forces but also high axial loads from one direction must be supported by the bearing position
- Bearing arrangements operating under the conditions described above must have very high rigidity
- Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
- Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage
- Particularly space-saving designs are required despite very high load
- Semi-locating bearing function
- Without cage
- 460000 N dynamic/465000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical roller bearings of this design have two rigid ribs on the outer ring and a self-retaining rolling element set, while the inner ring has only one rigid rib. As a result, the inner ring can be removed from the bearing. This gives easier mounting of the cylindrical roller bearings. The bearings are used as semi-locating bearings, i.e. they can guide the shaft axially in one direction and permit axial displacements in the bearing between the shaft and housing in one direction. The maximum axial displacement s is given in the product tables.
INA Cylindrical Roller Bearing, Full Complement Semi-Fixed, Series: SL1923, 75 mm Bore, 160 mm OD, 1 Rows, 55 mm Width, 465000 N Load, 2800 rpm Maximum, -30 to 120 deg C
SPECIFICATIONS
| Series | : | SL1923 |
| Load Capacity | : | 465000 N |
| Maximum Speed | : | 2800 rpm |
| Outside Diameter | : | 160 mm |
| Number of Rows | : | 1 |
| Width | : | 55 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
