SL185010-A

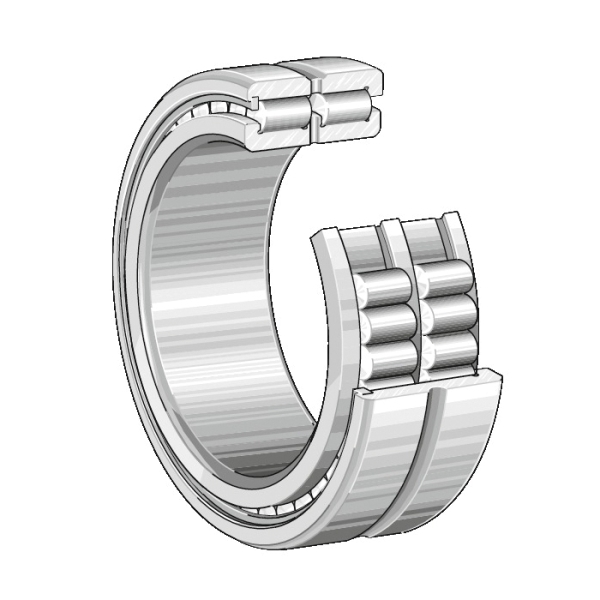

INA SL185010-A Full Complement Semi-Fixed Cylindrical Roller Bearing, 50 mm Dia Bore, 80 mm OD, 2 Rows, 40 mm W, 188000 N Load

  • Item#: SL185010
  • Mfr#: SL185010-A
  • UPC: 03537312827
  • Bearing arrangements are subjected to particularly high radial loads
  • Not only particularly high radial forces but also high axial loads from one or both directions must be supported by the bearing position
  • Bearing arrangements must have very high rigidity
  • Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
  • Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage
  • Space-saving designs are required despite very high load
  • Semi-locating bearing function
  • Without cage
  • 151000 N dynamic/188000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Bearings of series SL1850 (dimension series 50) have three rigid ribs on the inner ring and one rigid rib on the outer ring. In these cylindrical roller bearings, axial displacements of the shaft relative to the housing are possible in one direction only. The maximum axial displacement s is given in the product tables. The bearings are used as semi-locating bearings, i.e. they can guide the shaft axially in one direction.

INA Cylindrical Roller Bearing, Full Complement Semi-Fixed, Series: SL1850, 50 mm Bore, 80 mm OD, 2 Rows, 40 mm Width, 188000 N Load, 5300 rpm Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      SL1850
Load Capacity      :      188000 N
Maximum Speed      :      5300 rpm
Outside Diameter      :      80 mm
Number of Rows      :      2
Width      :      40 mm
