SL182216-A

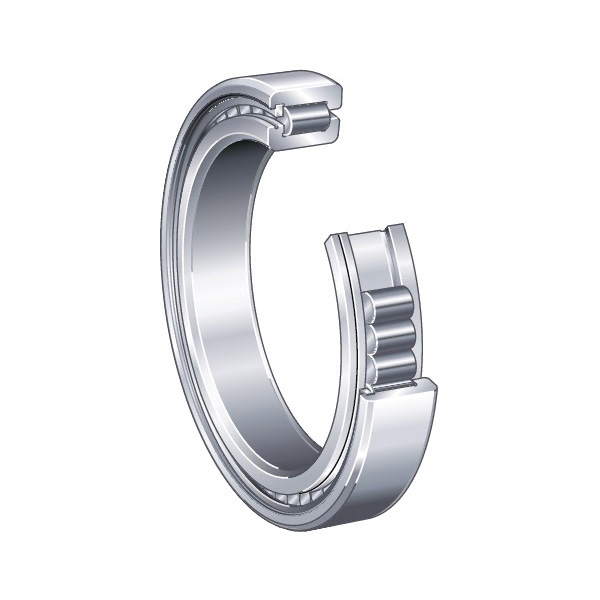

INA SL182216-A Full Complement Semi-Fixed Cylindrical Roller Bearing, 80 mm Dia Bore, 140 mm OD, 1 Row, 33 mm W, 280000 N Load

  • Item#: SL182216
  • Mfr#: SL182216-A
  • UPC: 03537319914
  • Bearing arrangements are subjected to particularly high radial loads
  • Not only very high radial forces but also high axial loads from one direction must be supported by the bearing position
  • Bearing arrangements operating under the conditions described above must have very high rigidity
  • Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
  • Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage
  • Particularly space-saving designs are required despite very high load
  • Semi-locating bearing function
  • Without cage
  • 223000 N dynamic/280000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

In these bearings, the outer ring has one rigid rib and the inner ring has two rigid ribs. As a result, axial displacements of the shaft relative to the housing can be compensated within certain limits. The maximum axial displacement s is given in the product tables. Since the axial motion occurs without constraint in the bearing itself, this is practically free from friction with a rotating bearing. Cylindrical roller bearings of this design are used as semi-locating bearings, i.e. they can guide the shaft axially in one direction, while they act in the opposite direction as non-locating bearings.

INA Cylindrical Roller Bearing, Full Complement Semi-Fixed, Series: SL1822, 80 mm Bore, 140 mm OD, 1 Rows, 33 mm Width, 280000 N Load, 3000 rpm Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      SL1822
Load Capacity      :      280000 N
Maximum Speed      :      3000 rpm
Outside Diameter      :      140 mm
Number of Rows      :      1
Width      :      33 mm
