INA SL045014-PP-2NR
INA

INA SL045014-PP-2NR

loading
INA
Email Print

SL045014-PP-2NR

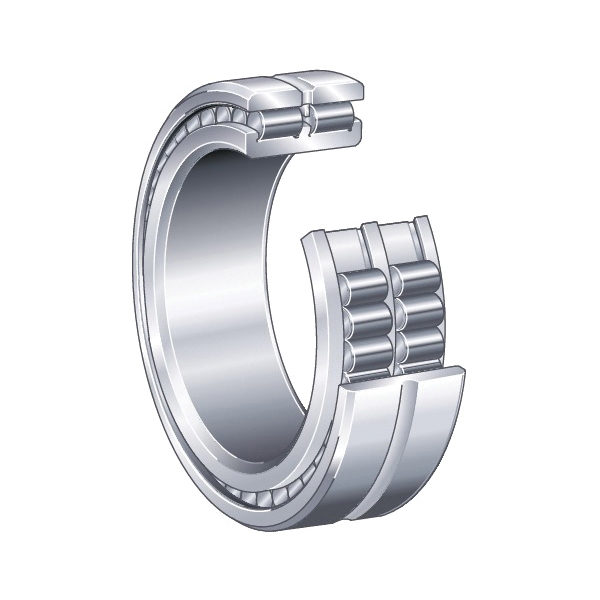

INA SL045014-PP-2NR Full Complement Fixed Cylindrical Roller Bearing, 70 mm Dia Bore, 110 mm OD, 2 Rows, 54 mm W, 275000 N Load

  • Item#: SL045014-PP-2NR
  • Mfr#: SL045014-PP-2NR
  • UPC: 03537337717
  • Bearing arrangements are subjected to particularly high radial loads
  • Bearing arrangements must have very high rigidity
  • Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage
  • Space-saving designs are required despite very high load
  • Annular slots locating bearing function
  • Contact seal on both sides
  • Supplied with two loose-packed retaining rings WRE
  • Without cage
  • 175000 N dynamic/275000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

These bearings comprise solid outer rings without ribs, inner rings with three ribs, rib-guided rolling element sets and sealing rings. The outer rings have annular slots for retaining rings. The inner rings are axially split, 1 mm wider than the outer rings and held together by a sheet metal ring. They are used as locating bearings (but can support only slight axial loads) and are used in preference for the support of rope sheaves.

INA Cylindrical Roller Bearing, Full Complement Fixed, Series: SL0450, 70 mm Bore, 110 mm OD, 2 Rows, 54 mm Width, Double Seal Closure, 275000 N Load, 1850 rpm Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      SL0450
Load Capacity      :      275000 N
Maximum Speed      :      1850 rpm
Outside Diameter      :      110 mm
Number of Rows      :      2
Width      :      54 mm
