SL014932-A-C3

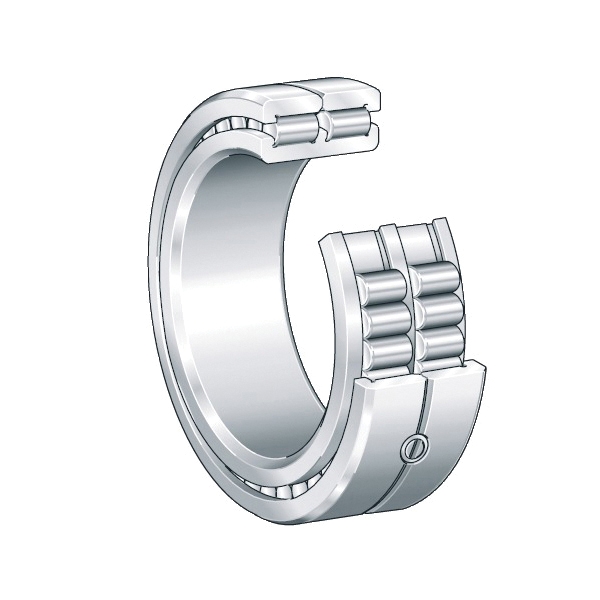

INA SL014932-A-C3 Full Complement Fixed Cylindrical Roller Bearing, 160 mm Dia Bore, 220 mm OD, 2 Rows, 60 mm W, 880000 N Load

  • Item#: SL014932-C3
  • Mfr#: SL014932-A-C3
  • UPC: 03537340848
  • Bearing arrangements are subjected to particularly high radial loads
  • Not only particularly high radial forces but also high axial loads from one or both directions must be supported by the bearing position
  • Bearing arrangements must have very high rigidity
  • Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage
  • Space-saving designs are required despite very high load
  • Locating bearing function
  • C3 radial internal clearance
  • Without cage
  • 425000 N dynamic/880000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

In these bearings, the inner ring has three rigid ribs and the outer ring has two rigid ribs. Axial displacements between the shaft and housing are not possible. The bearings are used as locating bearings, i.e. they can guide the shaft axially in both directions.

INA Cylindrical Roller Bearing, Full Complement Fixed, Series: SL0149, 160 mm Bore, 220 mm OD, 2 Rows, 60 mm Width, 880000 N Load, 1660 rpm Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      SL0149
Load Capacity      :      880000 N
Maximum Speed      :      1660 rpm
Outside Diameter      :      220 mm
Number of Rows      :      2
Width      :      60 mm
