RSTO25

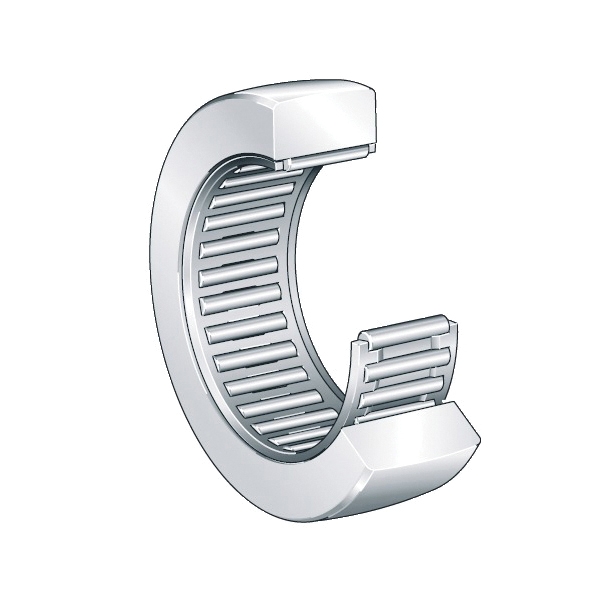

INA RSTO25 Crowned Yoke Type Track Roller, 30 mm Dia Bore, 52 mm Dia x 15.8 mm W Roller, 23200 N Load
- CP#:
- Item#: RSTO25
- Mfr#: RSTO25
- UPC: 03537318274
- Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
- Needle roller design
- Outer ring without ribs
- Without inner ring, seal and axial guidance
- Size code: 25
- 16400 N dynamic/23200 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Yoke type track rollers RSTO do not have an inner ring . Depending on the design, yoke type track rollers are also available as sealed. They are particularly compact but require a hardened and ground raceway on the shaft or stud. Series RSTO is not self-retaining, which means that the outer ring and the needle roller and cage assembly can be fitted independently of each other. This gives simplified mounting of the bearings. The rolling elements are guided by the cage. These designs do not have axial guidance of the outer ring. Axial guidance of the outer ring and needle roller and cage assembly (for RSTO only) must be provided in the adjacent construction.
INA Track Roller, Crowned Yoke Type, Series: RSTO, 30 mm Bore, 52 mm Roller Diameter, 15.8 mm Roller Width, 23200 N Load, Open Closure, 1800 rpm Maximum, -30 to 140 deg C, Uncoated
SPECIFICATIONS
| Series | : | RSTO |
| Finish | : | Uncoated |
| Load Capacity | : | 23200 N |
| Maximum Speed | : | 1800 rpm |
| Roller Diameter | : | 52 mm |
| Roller Width | : | 15.8 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
