RSL182210-A-XL

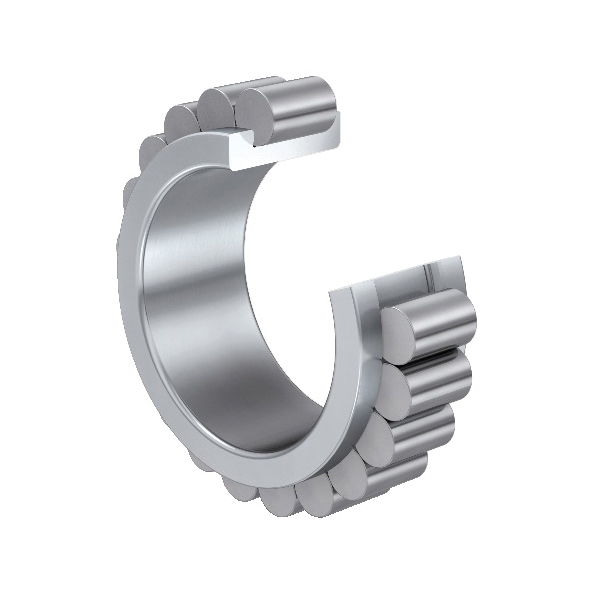

INA RSL182210-A-XL Full Complement Cylindrical Roller Bearing, 50 mm Dia Bore, 81.4 mm OD, 1 Row, 23 mm W, 111000 N Load
- CP#:
- Item#: RSL182210
- Mfr#: RSL182210-A-XL
- UPC: 03537341472
- Double flanged inner ring
- X-life design
- CN radial internal clearance
- Without outer ring
- 109000 N dynamic/111000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Full complement cylindrical roller bearings without an outer ring have solid inner rings and rib-guided cylindrical rollers. The inner rings are produced with two rigid ribs. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
INA Cylindrical Roller Bearing, Full Complement, Series: RSL1822, 50 mm Bore, 81.4 mm OD, 1 Rows, 23 mm Width, 111000 N Load, 4750 rpm Maximum
SPECIFICATIONS
| Series | : | RSL1822 |
| Load Capacity | : | 111000 N |
| Maximum Speed | : | 4750 rpm |
| Outside Diameter | : | 81.4 mm |
| Number of Rows | : | 1 |
| Width | : | 23 mm |
