RNA6913-ZW-XL

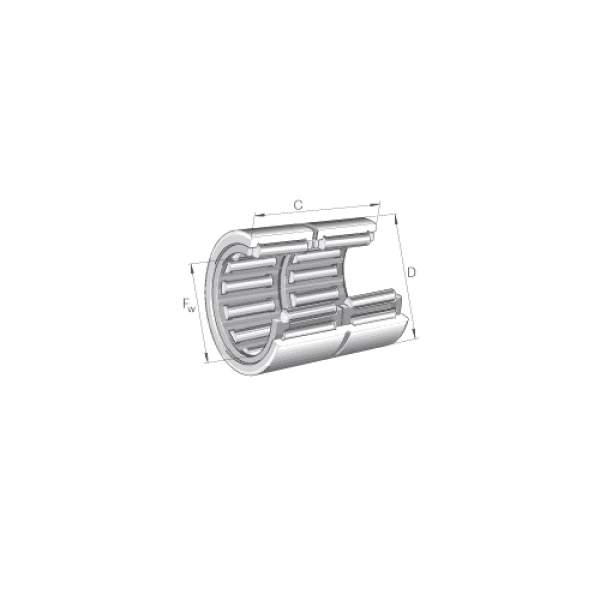

INA RNA6913-ZW-XL RNA69..-ZW Precision Needle Roller Bearing, 72 mm Dia Bore, 90 mm OD, 2 Rows, 45 mm W, 108000 N Dynamic/198000 N Static/33500 N Fatigue Load

  • Item#: RNA6913-ZW
  • Mfr#: RNA6913-ZW-XL
  • UPC: 03537311079
  • Without inner ring
  • Through hardened machined and ground raceways with cage and roller complements
  • Retainer guides needles providing full length roller contact for maximum capacity, low friction and long life
  • Design series exist to match ISO, DIN, popular metric and inch dimension series
  • Location hole and groove in outer ring
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

INA Precision Needle Roller Bearing, Series: RNA69..-ZW, 72 mm Bore Dia, 90 mm Outside Dia, 2 Rows, 45 mm W, Open Closure, 108000 N Dynamic/198000 N Static/33500 N Fatigue, Steel Cage, 6300 rpm Maximum, -20 to 120 deg C

SPECIFICATIONS

Series      :      RNA69..-ZW
Load Capacity      :      108000 N Dynamic/198000 N Static/33500 N Fatigue
Maximum Speed      :      6300 rpm
Outside Diameter      :      90 mm
Number of Rows      :      2
Width      :      45 mm

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_RNA6913_ZW_L_Specification_Sheet.pdf
