INA RCSMB20/65-XL-FA106
INA

INA RCSMB20/65-XL-FA106

loading
INA
Email Print

RCSMB20/65-XL-FA106

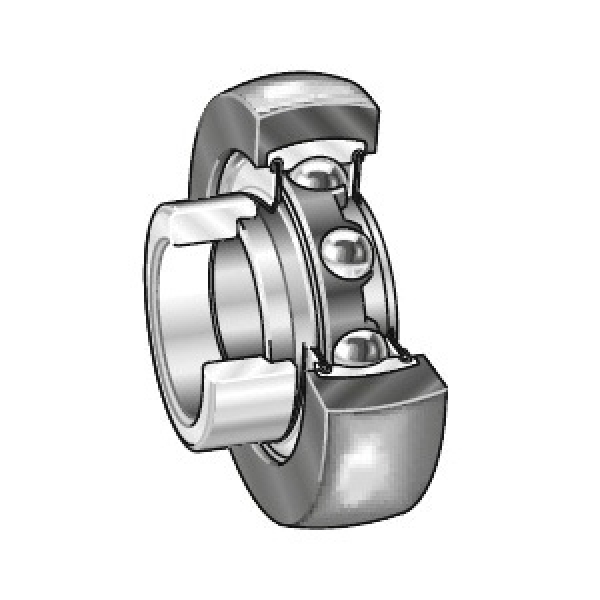

INA RCSMB20/65-XL-FA106 Radial Insert Ball Bearing Unit With Rubber Interliner, 20 mm Dia Bore, 65.1 mm OD, 1 Row, 31 mm W, 13600 N Load

  • Item#: RCSMB20/65-FA106
  • Mfr#: RCSMB20/65-XL-FA106
  • UPC: 03537310713
  • Bearing subjected to special noise testing
  • Cages are made from corrosion-resistant steel
  • Eccentric locking collar, P type seals on both sides
  • X-life design
  • 13600 N dynamic/6600 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft.

INA Radial Insert Ball Bearing Unit, Series: RCSMB-XL-FA106, 20 mm Bore, 65.1 mm OD, 1 Rows, 31 mm Width, Open Closure, 13600 N Load, Steel Bearing, Steel Cage, -20 to 85 deg C, Uncoated

SPECIFICATIONS

Series      :      RCSMB-XL-FA106
Bearing Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      13600 N
Outside Diameter      :      65.1 mm
Number of Rows      :      1
Width      :      31 mm
