RCJ100-XL

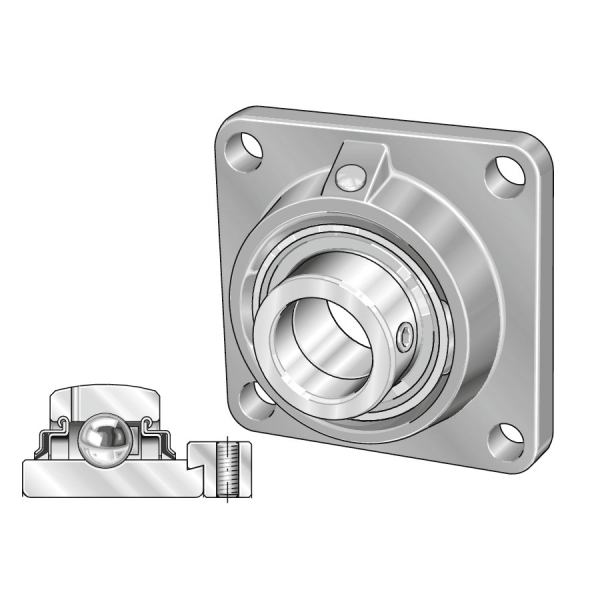

INA RCJ100-XL Flange Mount Housing Unit, For Use With GE100-KRR-B 122000 N Dynamic/93000 N Static Radial Insert Ball Bearing, 4-Bolt, 210 mm Bolt Center-to-Center Length, Cast Iron
- CP#:
- Item#: RCJ100
- Mfr#: RCJ100-XL
- UPC: 03537310513
- Cast iron housings are single-piece units with high load carrying capacity
- Relubrication facility
- Eccentric locking collar and R type seals
- X-life design
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA housed bearing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other.
INA Flange Mount Housing Unit, Series: RCJ-XL, For Use With: GE100-KRR-B 122000 N Dynamic/93000 N Static Radial Insert Ball Bearing, Specifications: 4-Bolt, 210 mm Bolt Center-to-Center Length, Cast Iron, 265 mm L x 77.5 mm W x 100 mm H Dimensions
SPECIFICATIONS
| Dimensions | : | 265 mm L x 77.5 mm W x 100 mm H |
| Series | : | RCJ-XL |
| Material | : | Cast Iron |
| Specifications | : | 4-Bolt, 210 mm Bolt Center-to-Center Length |
| Suitable For Use With | : | GE100-KRR-B 122000 N Dynamic/93000 N Static Radial Insert Ball Bearing |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
