RASEA25-XL-N

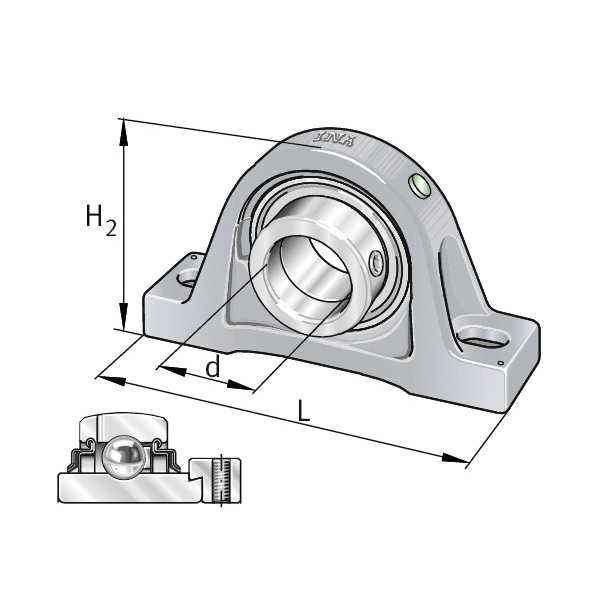

INA RASEA25-XL-N Plummer Block Housing Unit, 25 mm ID, 36.5 mm Base to Bore Centerline, 130 mm OAL x 70 mm OAH
- CP#:
- Item#: RASEA25-N
- Mfr#: RASEA25-XL-N
- UPC: 03537346280
- Long base are screw mounted to the adjacent construction by means of slots
- Adapter sleeve, R type seals
- X-life design
- Cast iron housing with undercut slot for end caps
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA housed bearing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The units are used predominantly as locating bearings, but are also suitable as non-locating bearings under low loads and speeds. The housings are screw mounted on the adjacent construction. Less stringent tolerances are sufficient for the screw mounting surfaces.
INA Plummer Block Housing Unit, Series: RASEA-XL, 25 mm ID, 36.5 mm Base to Bore Centerline, 130 mm Overall Length, 70 mm Overall Height, Compatible Bearing Type: Radial Insert Ball Bearing, 102.5 mm Bolt Center-to-Center Length, 36 mm Base Width, Flake Graphite Cast Iron
SPECIFICATIONS
| Base Width | : | 36 mm |
| Base to Bore Centerline | : | 36.5 mm |
| Series | : | RASEA-XL |
| Bolt Center-to-Center Length | : | 102.5 mm |
| Compatible Bearing Type | : | Radial Insert Ball Bearing |
| Overall Length | : | 130 mm |
| Material | : | Flake Graphite Cast Iron |
| Overall Height | : | 70 mm |
| Inside Diameter | : | 25 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
