RAE15-XL-NPP-B

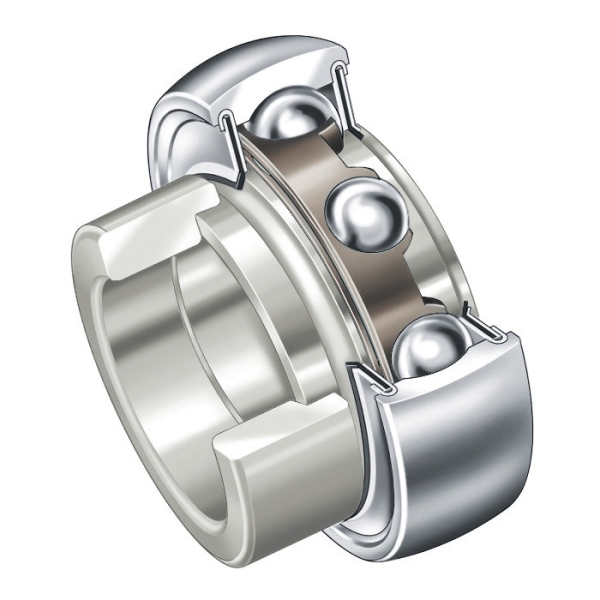

INA RAE15-XL-NPP-B RAE-XL-NPP-B Radial Insert Ball Bearing With Eccentric Lock Collar, 15 mm Dia Bore, 40 mm OD, 1 Rows, 28.6 mm W, 10100 N Load
- CP#:
- Item#: RAE15-NPP-B
- Mfr#: RAE15-XL-NPP-B
- UPC: 03537310232
- Radial insert ball bearings of X-life quality have an eccentric locking collar of an improved design and the quantity and distribution of the lubricant has been optimized
- Lip seals on both sides
- Two zinc-coated sheet steel washers with intermediate NBR part, seal lip axially preloaded
- Bearing with spherical outer ring
- Cages are made from corrosion-resistant steel
- Spherical outer ring, location by eccentric locking collar, P type seals on both sides
- X-life design
- 10100 N dynamic/4750 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft.
INA Radial Insert Ball Bearing, Series: RAE-XL-NPP-B, 15 mm Bore, 40 mm OD, 1 Rows, 28.6 mm Width, Double Seal Closure, 10100 N Load, Steel Bearing, NBR Seal, Steel Cage, 120 deg C, Uncoated
SPECIFICATIONS
| Series | : | RAE-XL-NPP-B |
| Bearing Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Uncoated |
| Load Capacity | : | 10100 N |
| Outside Diameter | : | 40 mm |
| Number of Rows | : | 1 |
| Seal Material | : | NBR |
| Width | : | 28.6 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
