PASE25-XL-N

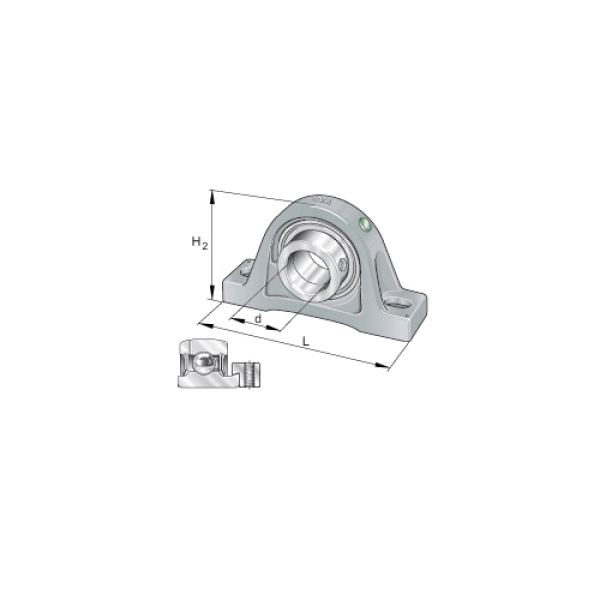

INA PASE25-XL-N Normal Duty Plummer Block Housing Unit, 25 mm Dia Bore, 103 mm L Bolt Center-to-Center, 36.5 mm Base to Bore Centerline, 130 mm OAL x 70 mm OAH
- CP#:
- Item#: PASE25-N
- Mfr#: PASE25-XL-N
- UPC: 03537337562
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Plummer Block Housing Unit, Normal Duty, Series: PASE-XL, 25 mm Bore, 103 mm Bolt Center-to-Center Length, 36.5 mm Base to Bore Centerline, 130 mm Overall Length, 31 mm Overall Width, 70 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 36 mm Base Width, Eccentric Locking Collar Locking Device, P Seal, Non-Expansion (Fixed), 14900 N Dynamic/7800 N Static Load, Cast Iron
SPECIFICATIONS
| Base Width | : | 36 mm |
| Base to Bore Centerline | : | 36.5 mm |
| Series | : | PASE-XL |
| Bolt Center-to-Center Length | : | 103 mm |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric Locking Collar |
| Overall Length | : | 130 mm |
| Load Capacity | : | 14900 N Dynamic/7800 N Static |
| Material | : | Cast Iron |
| Overall Width | : | 31 mm |
| Overall Height | : | 70 mm |
| Seal Type | : | P Seal |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_PASE25_L_Specification_Sheet.pdf
