PAGBAO40-PP-AS

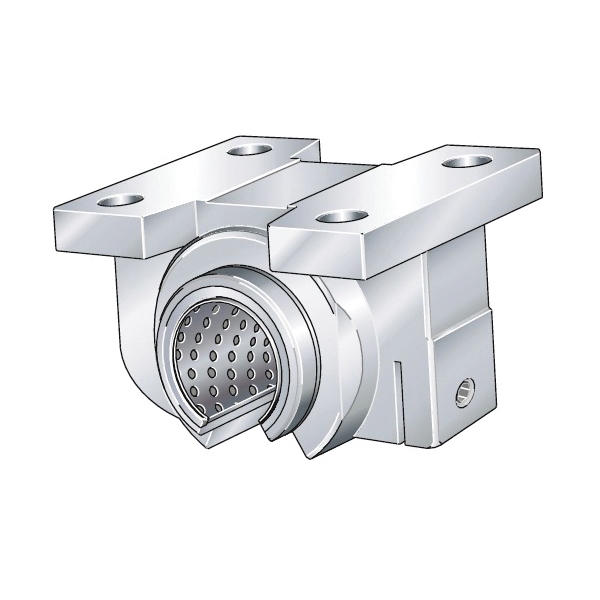

INA PAGBAO40-PP-AS Linear Plain Bearing Housing Unit, 40 mm Dia Bore, 86 mm L Bolt Center-to-Center, 45 mm Base to Bore Centerline, 108 mm OAL x 82.4 mm OAH
- CP#:
- Item#: PAGBAO40-PP-AS
- Mfr#: PAGBAO40-PP-AS
- UPC: 03537334982
- Segment cutout and slotted housing
- Lip seals on both sides
- Open design, sealed on all sides and with relubrication facility
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Linear bearings and linear bearing and housing units are available in the compact, light, heavy duty, machined and plain bearing range. The bearings can support high loads while having a relatively low mass and allow the construction of linear guidance systems with unlimited travel. Each series has highly specific characteristics that precisely define it as suitable for particular applications.
INA Linear Plain Bearing Housing Unit, Series: PAGBAO-PP-AS, 40 mm Bore, 86 mm Bolt Center-to-Center Length, 45 mm Base to Bore Centerline, 108 mm Overall Length, 80 mm Overall Width, 82.4 mm Overall Height, Round Bore, 78 mm Base Width, Contact Seal, 96000 N Load, -30 to 80 deg C, Aluminum
SPECIFICATIONS
| Base Width | : | 78 mm |
| Base to Bore Centerline | : | 45 mm |
| Series | : | PAGBAO-PP-AS |
| Bolt Center-to-Center Length | : | 86 mm |
| Overall Length | : | 108 mm |
| Load Capacity | : | 96000 N |
| Material | : | Aluminum |
| Overall Width | : | 80 mm |
| Overall Height | : | 82.4 mm |
| Seal Type | : | Contact |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_PAGBA20PPAS_Catalog.pdf
