NUTR2562-X-A

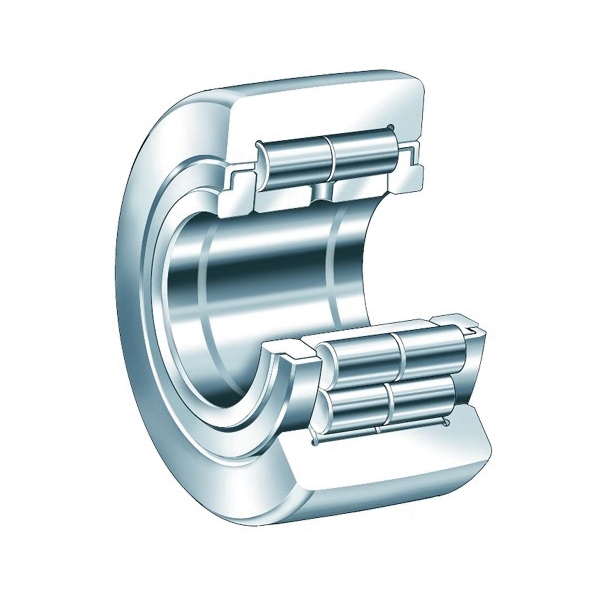

INA NUTR2562-X-A Flat Yoke Type Track Roller With Inner Ring, Optimized INA Profile and Axial Guidance, 25 mm Dia Bore, 62 mm Dia x 24 mm W Roller, 54000 N Load, Steel Roller
- CP#:
- Item#: NUTR2562X
- Mfr#: NUTR2562-X-A
- UPC: 03537331933
- Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
- Double row cylindrical roller design
- Full complement cylindrical roller set
- Labyrinth seals on both sides
- Cylindrical outer surface
- 35500 N dynamic/54000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Yoke type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.
INA Track Roller, Flat Yoke Type, Series: NUTR, 25 mm Bore, 62 mm Roller Diameter, 24 mm Roller Width, 25 mm Overall Width, 54000 N Load, Sealed Closure, 4200 rpm Maximum, -30 to 140 deg C, Steel Roller, Uncoated
SPECIFICATIONS
| Series | : | NUTR |
| Finish | : | Uncoated |
| Load Capacity | : | 54000 N |
| Maximum Speed | : | 4200 rpm |
| Roller Diameter | : | 62 mm |
| Roller Material | : | Steel |
| Overall Width | : | 25 mm |
| Roller Width | : | 24 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
