NUKRE80-A

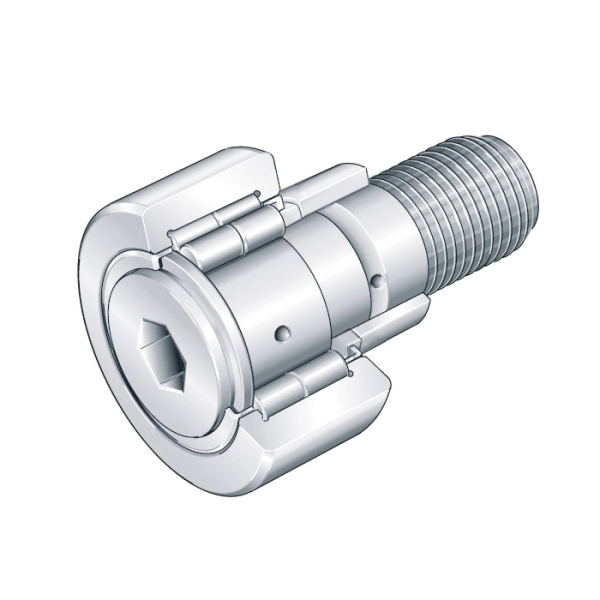

INA NUKRE80-A Crowned Stud Type Track Roller With Axial Guidance and Eccentric Collar, 80 mm Dia x 35 mm W Roller, 30 mm Dia x 63 mm L Stud, Steel Roller
- CP#:
- Item#: NUKRE80
- Mfr#: NUKRE80-A
- UPC: 03537332297
- The series NUKRE have an outside surface with the optimized INA profile
- The outer ring is guided axially by the rolling elements
- Full complement cylindrical roller set
- Labyrinth seals on both sides
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Stud type track rollers are similar in their construction to single and double row yoke type track rollers with axial guidance, except that the raceway is formed by a heavy-section roller stud with a fixing thread and type-dependent mounting aid, and with a type-dependent relubrication facility. Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running.
INA Track Roller, Crowned Stud Type, Series: NUKRE, 80 mm Roller Diameter, 35 mm Roller Width, 30 mm Stud Diameter, 63 mm Stud Length, M30 x 1.5 Thread, 32 mm Thread Length, 69000 N Dynamic/104000 N Static Load, 1800 rpm Maximum, -30 to 140 deg C, Eccentric Stud, Double Seal Closure, Hex Head, Steel Roller, Uncoated
SPECIFICATIONS
| Finish | : | Uncoated |
| Series | : | NUKRE |
| Head Type | : | Hex |
| Load Capacity | : | 69000 N Dynamic/104000 N Static |
| Maximum Speed | : | 1800 rpm |
| Roller Diameter | : | 80 mm |
| Roller Material | : | Steel |
| Roller Width | : | 35 mm |
| Stud Diameter | : | 30 mm |
| Stud Length | : | 63 mm |
| Stud Type | : | Eccentric |
| Thread Length | : | 32 mm |
| Thread Size | : | M30 x 1.5 |
