NATR30-PP-A

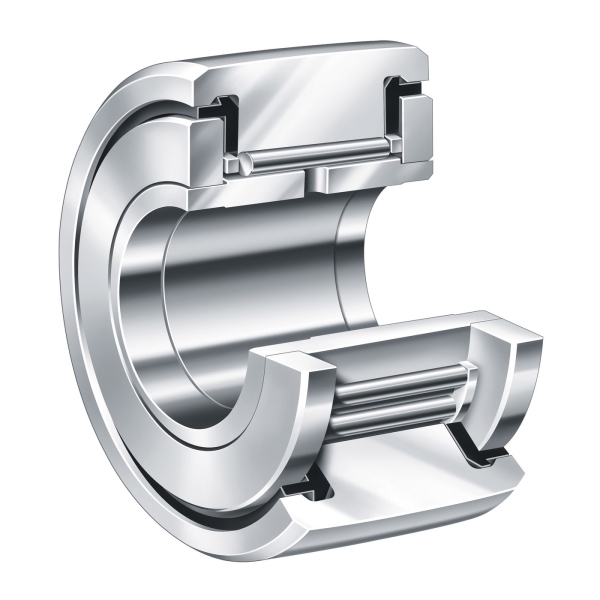

INA NATR30-PP-A Crowned Yoke Type Track Roller With Inner Ring and Axial Guidance, 30 mm Dia Bore, 62 mm Dia x 28 mm W Roller, 39000 N Load, Steel Roller
- CP#:
- Item#: NATR30-PP
- Mfr#: NATR30-PP-A
- UPC: 03537308377
- Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
- Needle roller design
- Plastic axial plain washer with formed seal lip on both sides of the bearing, giving a three stage seal
- 23200 N dynamic/39000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Yoke type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.
INA Track Roller, Crowned Yoke Type, Series: NATR, 30 mm Bore, 62 mm Roller Diameter, 28 mm Roller Width, 29 mm Overall Width, 39000 N Load, Double Seal Closure, 1300 rpm Maximum, -30 to 100 deg C, Steel Roller, Uncoated
SPECIFICATIONS
| Series | : | NATR |
| Finish | : | Uncoated |
| Load Capacity | : | 39000 N |
| Maximum Speed | : | 1300 rpm |
| Roller Diameter | : | 62 mm |
| Roller Material | : | Steel |
| Overall Width | : | 29 mm |
| Roller Width | : | 28 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
