NATR10

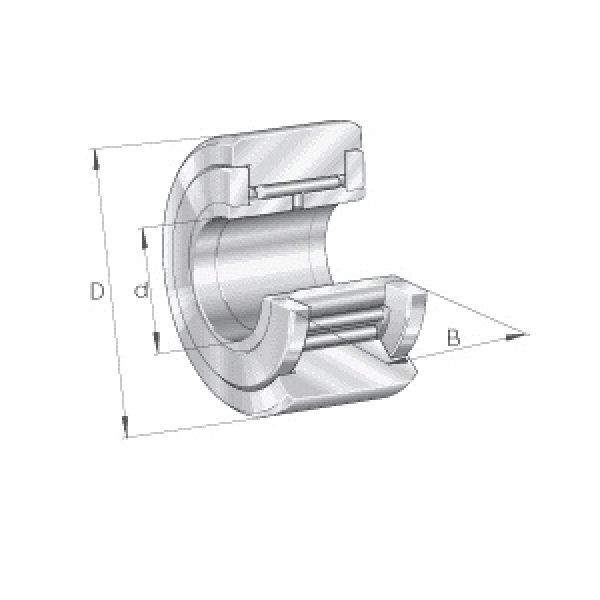

INA NATR10 Yoke Track Roller With Axial Guidance, 10 mm Dia Bore, 30 mm Dia x 14 mm W Roller, 6800 N Dynamic/8600 N Static/1220 N Fatigue Load, Steel Roller
- CP#:
- Item#: NATR10
- Mfr#: NATR10
- UPC: 03537308347
- Gap seal on both sides
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Track Roller, Yoke, Series: NATR, 10 mm Bore Dia, 30 mm Roller Dia, 14 mm Roller Width, 15 mm Overall Width, 6800 N Dynamic/8600 N Static/1220 N Fatigue, Sealed Closure, 5500 rpm Maximum, -30 to 140 deg C, Steel Roller, Uncoated
SPECIFICATIONS
| Series | : | NATR |
| Finish | : | Uncoated |
| Load Capacity | : | 6800 N Dynamic/8600 N Static/1220 N Fatigue |
| Maximum Speed | : | 5500 rpm |
| Roller Diameter | : | 30 mm |
| Roller Material | : | Steel |
| Overall Width | : | 15 mm |
| Roller Width | : | 14 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NATR10_Specification_Sheet.pdf
