NA2202-2RSR

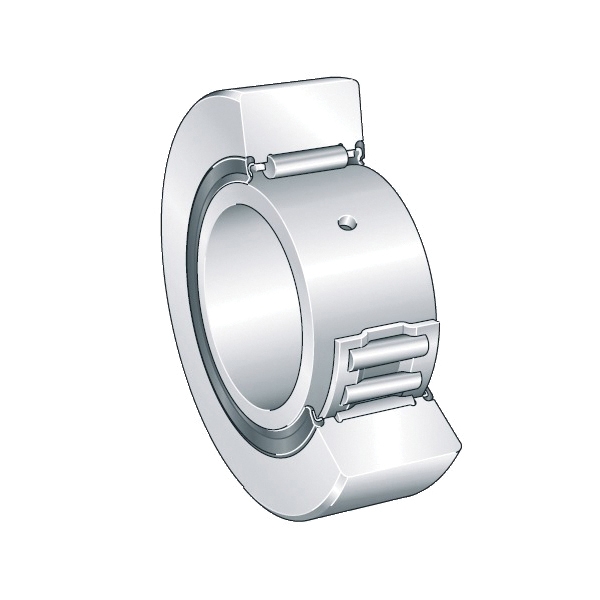

INA NA2202-2RSR Crowned Yoke Type Track Roller With Inner Ring, 15 mm Dia Bore, 35 mm Dia x 13.8 mm W Roller, 9800 N Load, Steel Roller

  • Item#: NA2202-2RSR
  • Mfr#: NA2202-2RSR
  • UPC: 03537308163
  • Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
  • Needle roller design
  • Lip seals on both sides
  • Without axial guidance
  • 7600 N dynamic/9800 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Yoke type track rollers NA22..-2RSR have an inner ring. Depending on the design, yoke type track rollers are also available as sealed versions. Bearings with an inner ring are used if the shaft or stud does not have a hardened and ground raceway. The rolling elements are guided by the cage. These designs do not have axial guidance of the outer ring.

INA Track Roller, Crowned Yoke Type, Series: NA22, 15 mm Bore, 35 mm Roller Diameter, 13.8 mm Roller Width, 14 mm Overall Width, 9800 N Load, Double Seal Closure, 3400 rpm Maximum, -30 to 120 deg C, Steel Roller, Uncoated

SPECIFICATIONS

Series      :      NA22
Finish      :      Uncoated
Load Capacity      :      9800 N
Maximum Speed      :      3400 rpm
Roller Diameter      :      35 mm
Roller Material      :      Steel
Overall Width      :      14 mm
Roller Width      :      13.8 mm
