LFR50/8-6-2RS-RB

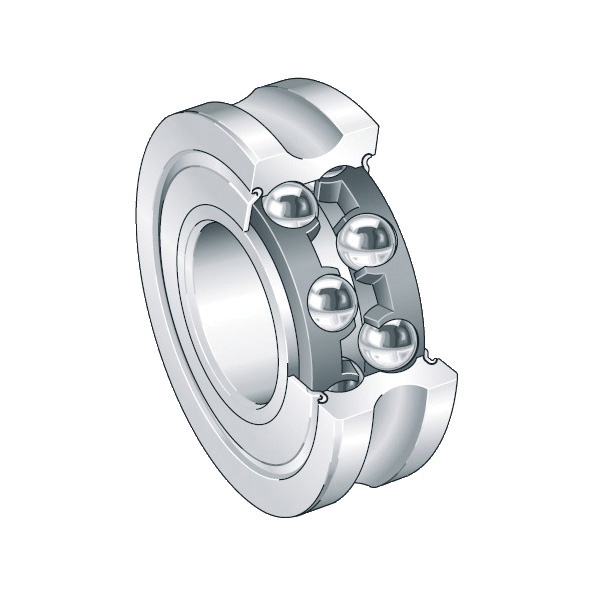

INA LFR50/8-6-2RS-RB Gothic Arch Groove Yoke Type Track Roller, 8 mm Dia Bore, 24 mm Dia x 11 mm W Roller, 4100 N Load, Steel Roller
- CP#:
- Item#: LFR50/8-6-2RS-RB
- Mfr#: LFR50/8-6-2RS-RB
- UPC: 03537318409
- Track rollers LFR are double row angular contact ball bearings comprising an outer ring with a gothic arch profile, an inner ring and two ball and cage assemblies with plastic cages
- The inner ring and outer ring are made from rolling bearing steel 100Cr6
- The special outer ring gives two point contact in the contact zone with the raceway
- The contact angle is a maximum of 30 deg
- The bearings can support axial forces from both directions as well as radial forces
- Contact seal on both sides
- The inner ring and outer ring are made from corrosion-resistant steel
- The rolling elements are protected against corrosion by the grease
- Locating bearing track roller
- 4100 N dynamic/2300 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Track Roller, Gothic Arch Groove Yoke Type, Series: LFR, 8 mm Bore, 24 mm Roller Diameter, 11 mm Roller Width, 11 mm Overall Width, 4100 N Load, Double Seal Closure, Steel Roller
SPECIFICATIONS
| Series | : | LFR |
| Load Capacity | : | 4100 N |
| Roller Diameter | : | 24 mm |
| Roller Material | : | Steel |
| Overall Width | : | 11 mm |
| Roller Width | : | 11 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_LFR50862RSRB_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
