LFKL32-SF

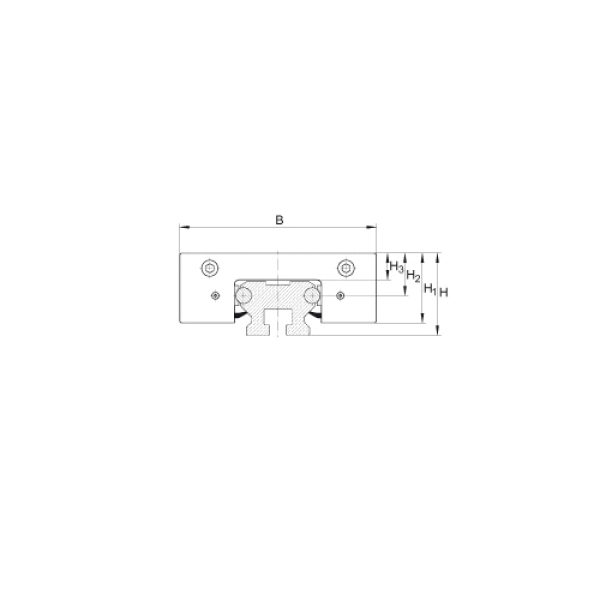

INA LFKL32-SF LFKL..-SF Series Modular Compact Carriage, 112 mm L x 86 mm W x 35.5 mm H
- CP#:
- Item#: LFKL32-SF
- Mfr#: LFKL32-SF
- UPC: 03537329858
- Clearance-free
- Corrosion-resistant design possible
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Compact Carriage, Modular, Series: LFKL..-SF Series, 86 mm Width, 35.5 mm Height, 112 mm Length, 4100 N Dynamic at Y Direction/6600 N Dynamic at Z Direction/2400 N Static at Y Direction/4200 N Static at Z Direction
SPECIFICATIONS
| Load Capacity | : | 4100 N Dynamic at Y Direction/6600 N Dynamic at Z Direction/2400 N Static at Y Direction/4200 N Static at Z Direction |
| Series | : | LFKL..-SF |
| Type | : | Modular |
| Length | : | 112 mm |
| Width | : | 86 mm |
| Height | : | 35.5 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_LFKL32_SF_Specification_Sheet.pdf
