KB30-PP
INA KB30-PP KB..-PP Linear Ball Bushing Bearing, Closed Closure, 30 mm Dia Shaft, 47 mm OD, 68 mm L
- CP#:
- Item#: KB30-PP
- Mfr#: KB30-PP
- UPC: 03537307536
- The special recirculation design provides a uniform, low resistance to displacement with extremely smooth running even in highly loaded and preloaded linear ball bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

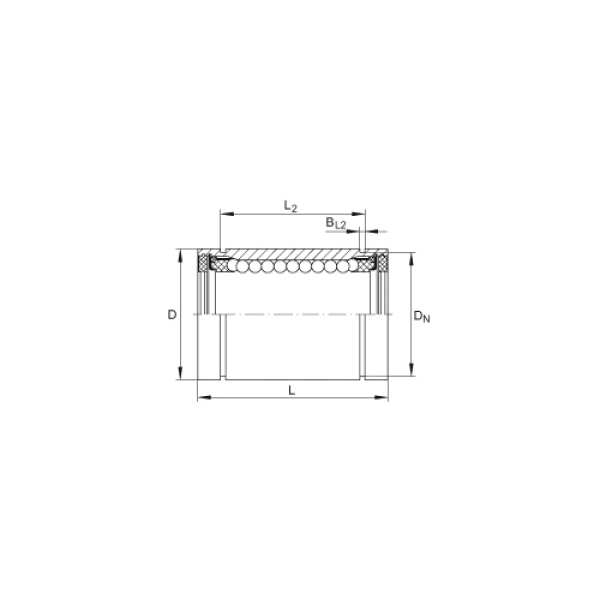

INA linear ball bearings of series KB consist of a hardened and ground outer ring and a cage in which the balls are guided. The balls in the return zones are held in place by spring elements. This ensures that even heavily loaded or preloaded bearings have a uniform, low resistance to displacement.
INA Linear Ball Bushing Bearing, Series: KB..-PP, 30 mm Shaft Dia, 47 mm Outside Dia, 47 mm Height, 68 mm Length, 47 mm W, Closed Closure, 3600 to 3800/2850 to 3600 N, Alloy Steel Bearing, Buna-N Seal, -30 to 80 deg C
SPECIFICATIONS
| Bearing Material | : | Alloy Steel |
| Height | : | 47 mm |
| Load Capacity | : | 3600 to 3800/2850 to 3600 N |
| Seal Material | : | Buna-N |
| Series | : | KB..-PP |
| Temperature Rating | : | -30 to 80 deg C |
| Width | : | 47 mm |
| Closure Type | : | Closed |
| Shaft Diameter | : | 30 mm |
| Outside Diameter | : | 47 mm |
| Length | : | 68 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_KB30_PP_Specification_Sheet.pdf
