K81105-TV/0-8

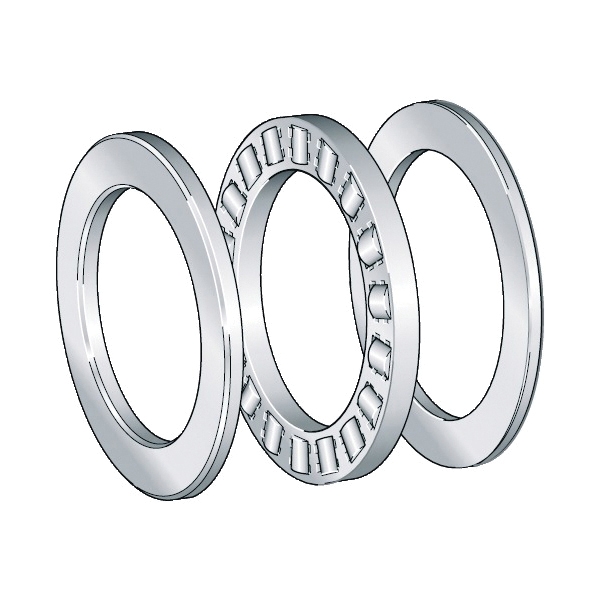

INA K81105-TV/0-8 Single Direction Single Row Axial Cylindrical Roller and Cage Assembly, 25 mm Dia Bore, 42 mm OD, 5 mm W, Polyamide

  • Item#: K81105-TV
  • Mfr#: K81105-TV/0-8
  • UPC: 03537307396
  • Single and double row axial cylindrical roller bearings are particularly suitable where high axial and shock loads occur in one direction but no radial loads are present
  • The load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate
  • The axial space available is very small
  • The bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
  • The bearing parts can or must be mounted separately
  • The bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used
  • Suitable for combination with axial bearing washer
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Axial cylindrical roller bearings combine axial cylindrical roller and cage assemblies, housing locating washers and shaft locating washers. The bearings have very low axial section height, high load capacity, high rigidity and can support axial forces in one direction.

INA Axial Cylindrical Roller and Cage Assembly, Single Direction Single Row, Series: K811, 25 mm Bore, 42 mm OD, 5 mm Width, 33500 N Dynamic/76000 N Static Load, Polyamide, 8900 rpm Maximum, -20 to 120 deg C

SPECIFICATIONS

Series      :      K811
Load Capacity      :      33500 N Dynamic/76000 N Static
Material      :      Polyamide
Maximum Speed      :      8900 rpm
Outside Diameter      :      42 mm
Width      :      5 mm
