HK2012-AS1-B

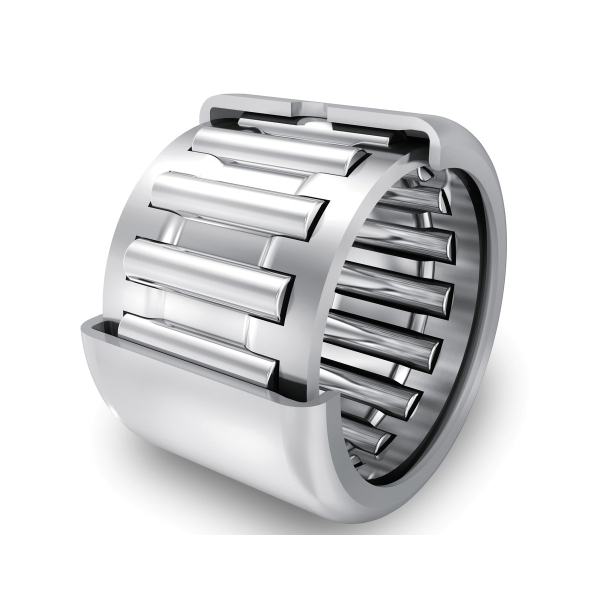

INA HK2012-AS1-B Drawn Cup Needle Roller Bearing With Open End, 20 mm Dia Bore, 26 mm OD, 1 Row, 12 mm W, 12100 N Load

  • Item#: HK2012-AS1
  • Mfr#: HK2012-AS1-B
  • UPC: 03537332932
  • The bearings are particularly suitable for applications with a very small radial section height on account of their very low cross-sectional height
  • Used if the housing bore is not suitable as a raceway for needle roller and cage assemblies
  • Can support high radial loads
  • Require a considerably smaller radial design envelope than machined needle roller bearings
  • Usually run directly on the shaft
  • Permit relatively high speeds
  • Easy to mount
  • Require no additional means of axial retention
  • Can be readily used to close off the shaft ends of bearing positions
  • Result in particularly compact, cost-effective and economical bearing arrangements
  • AS1 with lubrication hole from HK0609
  • 8600 N dynamic/12100 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Drawn cup needle roller bearings with open ends are supplied with a needle roller and cage assembly or a full complement needle roller set. Bearings with needle roller and cage assemblies allow higher speeds than the full complement designs.

INA Drawn Cup Needle Roller Bearing, Series: HK Series, 20 mm Bore, 26 mm OD, 1 Rows, 12 mm Width, Open Closure, 12100 N Load, Sheet Steel Cage, 12700 rpm Maximum, -30 to 140 deg C

SPECIFICATIONS

Series      :      HK Series
Load Capacity      :      12100 N
Maximum Speed      :      12700 rpm
Outside Diameter      :      26 mm
Number of Rows      :      1
Width      :      12 mm
