HK1812-B

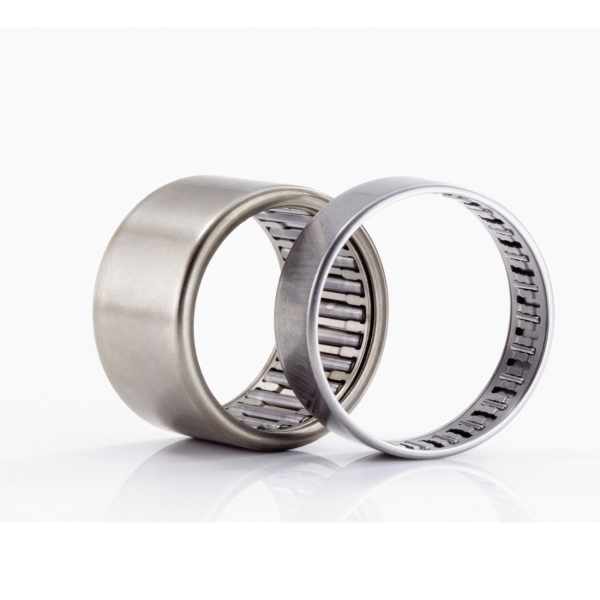

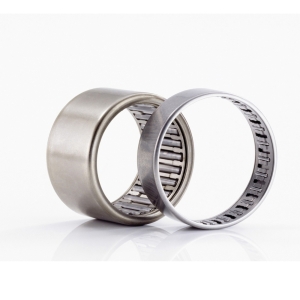

INA HK1812-B Drawn Cup Needle Roller Bearing With Open End, 18 mm Dia Bore, 24 mm OD, 1 Row, 12 mm W, 10900 N Load

  • Item#: HK1812
  • Mfr#: HK1812-B
  • UPC: 03537327974
  • The bearings are particularly suitable for applications with a very small radial section height on account of their very low cross-sectional height
  • Used if the housing bore is not suitable as a raceway for needle roller and cage assemblies
  • Can support high radial loads
  • Require a considerably smaller radial design envelope than machined needle roller bearings
  • Usually run directly on the shaft
  • Permit relatively high speeds
  • Easy to mount
  • Require no additional means of axial retention
  • Can be readily used to close off the shaft ends of bearing positions
  • Result in particularly compact, cost-effective and economical bearing arrangements
  • 8100 N dynamic/10900 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Drawn cup needle roller bearings with open ends are supplied with a needle roller and cage assembly or a full complement needle roller set. Bearings with needle roller and cage assemblies allow higher speeds than the full complement designs.

INA Drawn Cup Needle Roller Bearing, Series: HK Series, 18 mm Bore, 24 mm OD, 1 Rows, 12 mm Width, Open Closure, 10900 N Load, Sheet Steel Cage, 14000 rpm Maximum, -30 to 140 deg C

SPECIFICATIONS

Series      :      HK Series
Load Capacity      :      10900 N
Maximum Speed      :      14000 rpm
Outside Diameter      :      24 mm
Number of Rows      :      1
Width      :      12 mm
