HF1416-L564

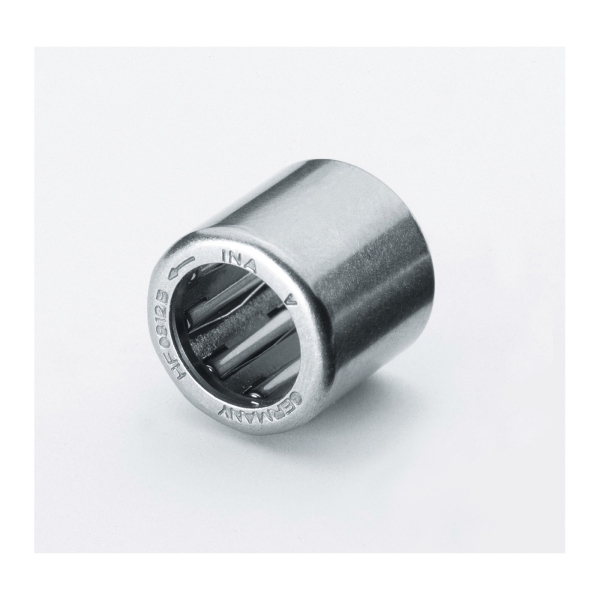

INA HF1416-L564 Shell Drawn Cup Roller Clutch, 14 mm Dia Bore, 20 mm OD, 16 mm W, 17.3 N-m Torque

  • Item#: HF1416
  • Mfr#: HF1416-L564
  • UPC: 03537306117
  • One-way clutches, which transmit torques in one direction
  • Give very precise indexing
  • Allow high indexing frequencies
  • Have a low overrunning frictional torque
  • Particularly compact in a radial direction and therefore permit extremely compact designs
  • Suitable for housing materials made from steel, light metal or plastic
  • Can be combined with drawn cup needle roller bearings with open ends HK and drawn cup needle roller bearings with closed end BK
  • Without bearing arrangement
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Drawn cup roller clutches comprise thin-walled, drawn outer cups with a series of ramps on the inside diameter, plastic cages and needle rollers, which serve as clamping elements. Steel or plastic springs hold the needle rollers in their clamped position. Drawn cup roller clutches can transmit high torques in one direction and are particularly compact in a radial direction.

INA Drawn Cup Roller Clutch, Shell, Series: HF Series, 14 mm Bore, 20 mm OD, 16 mm Width, 17.3 N-m Torque, Plastic Cage, 9500 rpm Maximum, -10 to 70 deg C

SPECIFICATIONS

Series      :      HF Series
Maximum Speed      :      9500 rpm
Outside Diameter      :      20 mm
Torque Rating      :      17.3 N-m
Width      :      16 mm
