GLE60-XL-KRR-B
INA GLE60-XL-KRR-B GLE-XL-KRR-B Radial Insert Ball Bearing, 60 mm Dia Bore, 110 mm OD, 1 Rows, 61.9 mm W, 56000 N Load
- CP#:
- Item#: GLE60-KRR-B
- Mfr#: GLE60-XL-KRR-B
- UPC: 03537305797
- Lip seals on both sides
- Two zinc-coated sheet steel washers extended outwards and angled downwards with intermediate NBR or PTFE part and radially preloaded seal lip
- Bearing with spherical outer ring
- Cages are made from corrosion-resistant steel
- Spherical outer ring, non-locating bearing, drive slot in inner ring, R type seals on both sides
- X-life design
- 56000 N dynamic/36000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

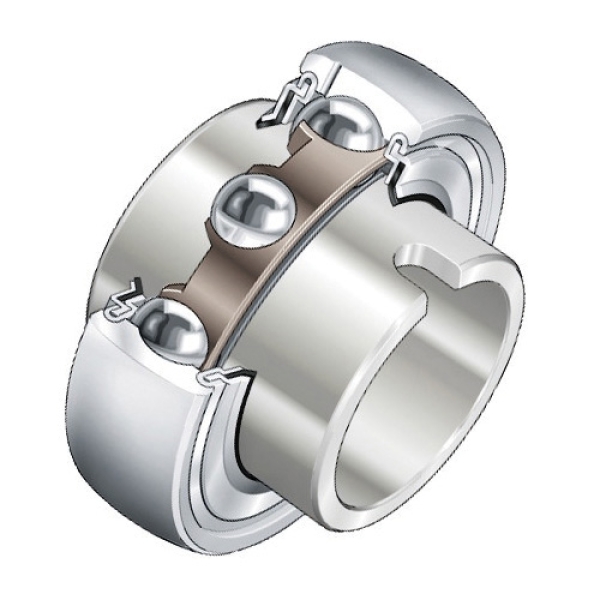

Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft.
INA Radial Insert Ball Bearing, Series: GLE-XL-KRR-B, 60 mm Bore, 110 mm OD, 1 Rows, 61.9 mm Width, Double Seal Closure, 56000 N Load, Steel Bearing, NBR/PTFE Seal, Steel Cage, 120 deg C, Uncoated
SPECIFICATIONS
| Series | : | GLE-XL-KRR-B |
| Bearing Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Uncoated |
| Load Capacity | : | 56000 N |
| Outside Diameter | : | 110 mm |
| Number of Rows | : | 1 |
| Seal Material | : | NBR/PTFE |
| Width | : | 61.9 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
