GIR25-DO-2RS

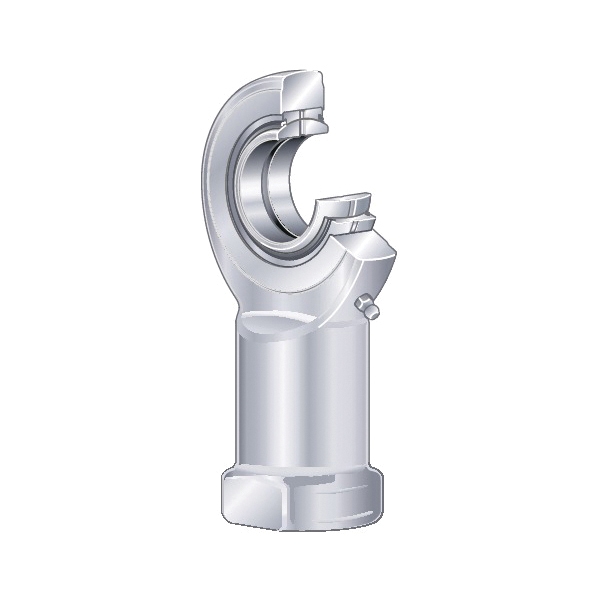

INA GIR25-DO-2RS Female Rod End With Lubrication Fitting, 25 mm Dia Bore, 64 mm OD, 20 mm W, 88200 N Load, Steel
- CP#:
- Item#: GIR25-DO-2RS
- Mfr#: GIR25-DO-2RS
- UPC: 03537324506
- Standard lip seals on both sides
- Requiring maintenance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Maintenance-free rod ends and maintenance-free corrosion resistant rod ends comprise a housing with integral shank and a maintenance-free spherical plain bearing. The shank has an internal or external thread, the spherical plain bearing is firmly seated and located in the housing. The rod ends are available in open designs and in designs sealed on both sides. The housings and shanks are protected against corrosion by a zinc coating.
INA Female Rod End, Series: GIR-DO-2RS, 25 mm Bore, 64 mm OD, 20 mm Width, Internal Right Hand Thread, M24 x 2 Thread, 94 mm Center Line Length, 88200 N Load, -30 to 130 deg C, Steel, Zinc Plated, 126 mm L Dimensions
SPECIFICATIONS
| Center Line Length | : | 94 mm |
| Series | : | GIR-DO-2RS |
| Dimensions | : | 126 mm L |
| Finish | : | Zinc Plated |
| Load Capacity | : | 88200 N |
| Material | : | Steel |
| Outside Diameter | : | 64 mm |
| Thread Size | : | M24 x 2 |
| Thread Type | : | Internal Right Hand |
| Width | : | 20 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
