GIHRK40-DO-B

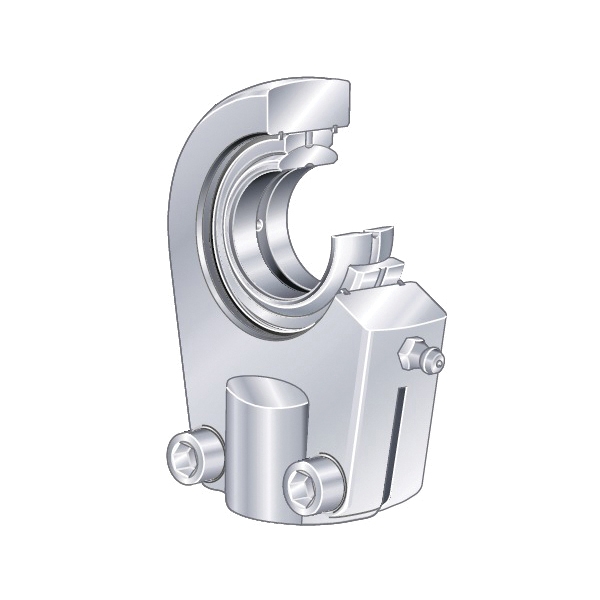

INA GIHRK40-DO-B Hydraulic Female Rod End With Thread Clamping Device and Lubrication Fitting, 40 mm Dia Bore, 94 mm OD, 28 mm W, 228000 N Load, Steel
- CP#:
- Item#: GIHRK40-DO
- Mfr#: GIHRK40-DO-B
- UPC: 03537342227
- Requiring maintenance
- 99100 N dynamic/228000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hydraulic rod ends requiring maintenance incorporate radial spherical plain bearings with a steel/steel sliding contact surface. The rod ends can be screw mounted using a thread in the shank or welded in place by means of circular or rectangular welding faces. In the case of rod ends with a thread clamping facility, the spherical plain bearings are axially located in the housing by means of retaining rings.
INA Female Rod End, Hydraulic, Series: GIHRK-DO, 40 mm Bore, 94 mm OD, 28 mm Width, Right Hand Thread, M35 x 1.5 Thread, 85 mm Center Line Length, 228000 N Load, -60 to 200 deg C, Steel, 132 mm L Dimensions
SPECIFICATIONS
| Center Line Length | : | 85 mm |
| Series | : | GIHRK-DO |
| Dimensions | : | 132 mm L |
| Load Capacity | : | 228000 N |
| Material | : | Steel |
| Outside Diameter | : | 94 mm |
| Thread Size | : | M35 x 1.5 |
| Thread Type | : | Right Hand |
| Width | : | 28 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
