GE25-XL-KLL-B

INA GE25-XL-KLL-B GE-XL-KLL-B Radial Insert Ball Bearing With Eccentric Lock Collar, 25 mm Dia Bore, 52 mm OD, 1 Rows, 44.5 mm W, 14900 N Load

  • Item#: GE25-KLL-B
  • Mfr#: GE25-XL-KLL-B
  • UPC: 03537305578
  • Radial insert ball bearings of X-life quality have an eccentric locking collar of an improved design and the quantity and distribution of the lubricant has been optimized
  • Labyrinth seals on both sides
  • Two zinc-coated sheet steel washers extended outwards in the outer ring with a zinc-plated intermediate sheet steel L-section ring pressed onto the inner ring
  • Bearing with spherical outer ring
  • Cages are made from corrosion-resistant steel
  • Spherical outer ring, location by eccentric locking collar, L type seals on both sides
  • X-life design
  • 14900 N dynamic/7800 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

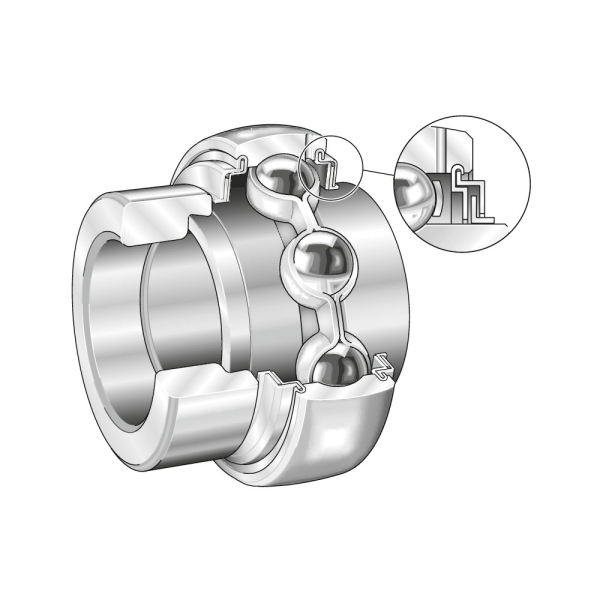

Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft.

INA Radial Insert Ball Bearing, Series: GE-XL-KLL-B, 25 mm Bore, 52 mm OD, 1 Rows, 44.5 mm Width, Double Seal Closure, 14900 N Load, Steel Bearing, Steel Cage, 120 deg C, Uncoated

SPECIFICATIONS

Series      :      GE-XL-KLL-B
Bearing Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Uncoated
Load Capacity      :      14900 N
Outside Diameter      :      52 mm
Number of Rows      :      1
Width      :      44.5 mm
