GAR25-UK

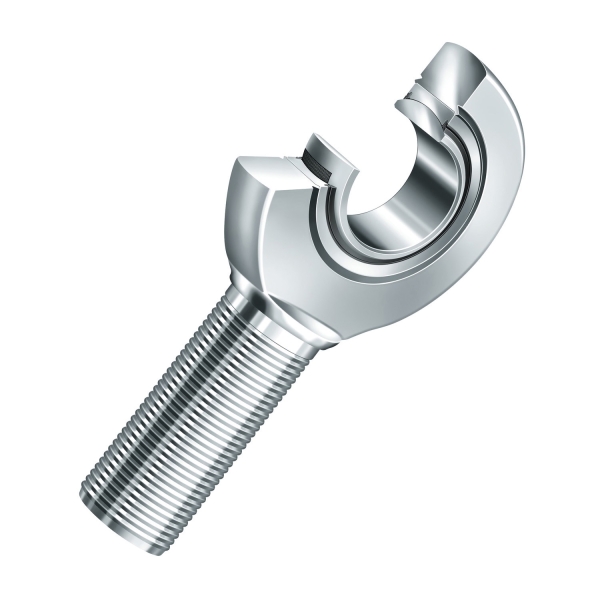

INA GAR25-UK Male Rod End, 25 mm Dia Bore, 64 mm OD, 20 mm W, 105000 N Load, Steel
- CP#:
- Item#: GAR25-UK
- Mfr#: GAR25-UK
- UPC: 03537325647
- Self-lubricating
- Requiring maintenance
- 51100 N dynamic/105000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rod ends requiring maintenance comprise a housing with integral shank and a spherical plain bearing requiring maintenance. In other respects, the construction corresponds to that of maintenance-free rod ends.
INA Male Rod End, Series: GAR-UK, 25 mm Bore, 64 mm OD, 20 mm Width, External Right Hand Thread, M24 x 2 Thread, 94 mm Center Line Length, 105000 N Load, -50 to 200 deg C, Steel, Zinc Plated, 126 mm L Dimensions
SPECIFICATIONS
| Center Line Length | : | 94 mm |
| Series | : | GAR-UK |
| Dimensions | : | 126 mm L |
| Finish | : | Zinc Plated |
| Load Capacity | : | 105000 N |
| Material | : | Steel |
| Outside Diameter | : | 64 mm |
| Thread Size | : | M24 x 2 |
| Thread Type | : | External Right Hand |
| Width | : | 20 mm |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
