AXK160200-A/0-10

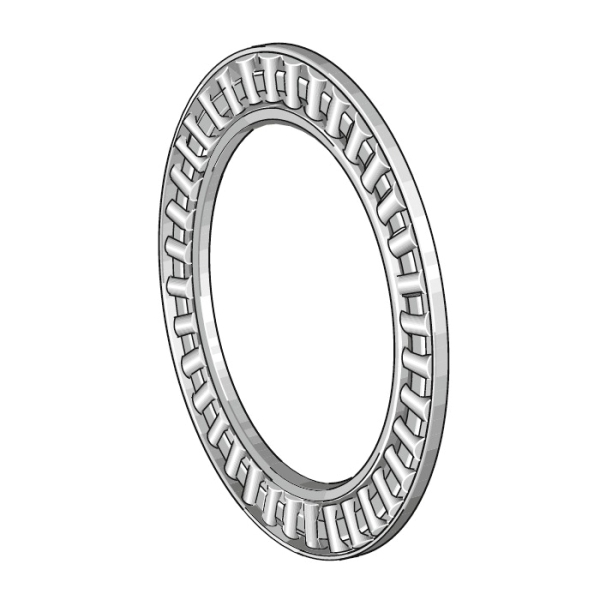

INA AXK160200-A/0-10 Single Direction Axial Needle Roller and Cage Assembly, 160 mm Dia Bore, 200 mm OD, 5 mm W, Sheet Steel
- CP#:
- Item#: AXK160200
- Mfr#: AXK160200-A/0-10
- UPC: 03537319614
- Axial needle roller bearings are particularly suitable where high axial forces occur in one direction but no radial loads are present
- The load carrying capacity of comparable axial deep groove ball bearings is no longer adequate and the very high axial load carrying capacity of axial cylindrical roller bearings is not yet necessary
- Higher speeds occur in addition to high axial loads
- The bearing arrangement must have very high axial rigidity
- The axial space available is extremely small
- The bearing parts can or must be mounted separately
- The bearing arrangement is not configured but, for cost reasons, ready-to-fit standard bearings are to be used
- The bearings are not sealed
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Axial needle roller and cage assemblies AXK comprise geometrically stable plastic or metal cages fitted with a large number of needle rollers. Due to the high uniformity of diameter (the needle rollers are sorted to very small diameter tolerances) of the needle rollers with each other, this gives very uniform loading of the rolling elements. Since the axial section height of the cage assemblies is determined purely by the needle roller diameter, the bearings require only an extremely small axial design space.
INA Axial Needle Roller and Cage Assembly, Single Direction, Series: AXK, 160 mm Bore, 200 mm OD, 5 mm Width, 148000 N Dynamic/1020000 N Static Load, Sheet Steel, 1590 rpm Maximum, -20 to 120 deg C
SPECIFICATIONS
| Series | : | AXK |
| Load Capacity | : | 148000 N Dynamic/1020000 N Static |
| Material | : | Sheet Steel |
| Maximum Speed | : | 1590 rpm |
| Outside Diameter | : | 200 mm |
| Width | : | 5 mm |
