206-XL-KRR

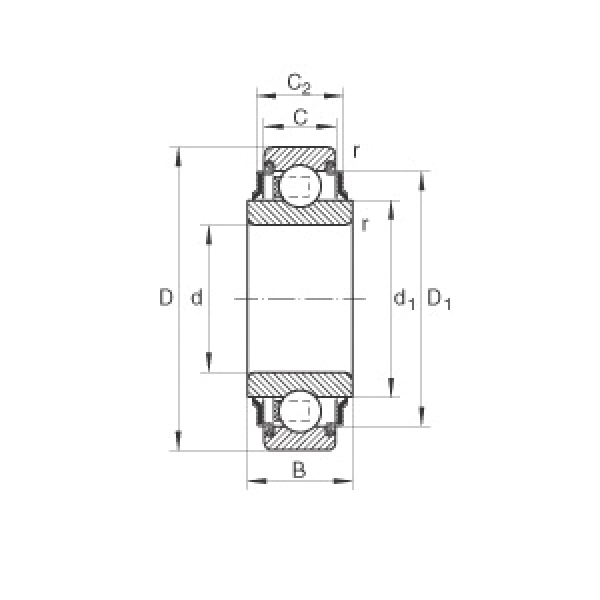

INA 206-XL-KRR 2..-KRR Radial Insert Ball Bearing, 30 mm Dia Bore, 62 mm OD, 1 Rows, 24 mm W, 20700 N Dynamic/11300 N Static/570 N Fatigue Load
- CP#:
- Item#: 206-KRR
- Mfr#: 206-XL-KRR
- UPC: 03537340790
- Cylindrical outer ring
- Inner ring for fit
- R seals on both sides
- Cylindrical bore per 6200 series tolerance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Radial Insert Ball Bearing, Series: 2..-KRR, 30 mm Bore, 62 mm OD, 1 Rows, 24 mm Width, Double Seal Closure, 20700 N Dynamic/11300 N Static/570 N Fatigue Load, 6700 rpm Maximum, -20 to 120 deg C
SPECIFICATIONS
| Series | : | 2..-KRR |
| Closure Type | : | Double Seal |
| Load Capacity | : | 20700 N Dynamic/11300 N Static/570 N Fatigue |
| Maximum Speed | : | 6700 rpm |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 1 |
| Width | : | 24 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_206_L_KRR_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
