TAFI253830

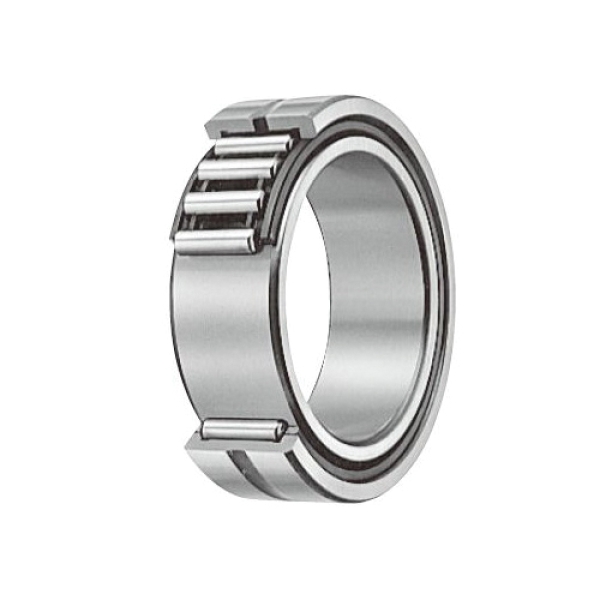

IKO TAFI253830 Metric Series Caged Light Duty Machined Needle Roller Bearing With Oil Hole and Inner Ring, 25 mm Dia Bore, 38 mm OD, 30 mm W, 30900 N Dynamic/59100 N Static Load

  • Item#: TAFI253830
  • Mfr#: TAFI253830
  • UPC: 4549557063343
    • Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
    • Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.

IKO Needle Roller Bearing, Caged Light Duty Machined, Series: TAFI Metric Series, 25 mm Bore, 38 mm OD, 30 mm Width, 30900 N Dynamic/59100 N Static Load, High Carbon Steel Bearing, 14000 rpm Maximum

SPECIFICATIONS

Series      :      TAFI Metric Series
Bearing Material      :      High Carbon Steel
Load Capacity      :      30900 N Dynamic/59100 N Static
Maximum Speed      :      14000 rpm
Outside Diameter      :      38 mm
Width      :      30 mm
