NBX2030Z

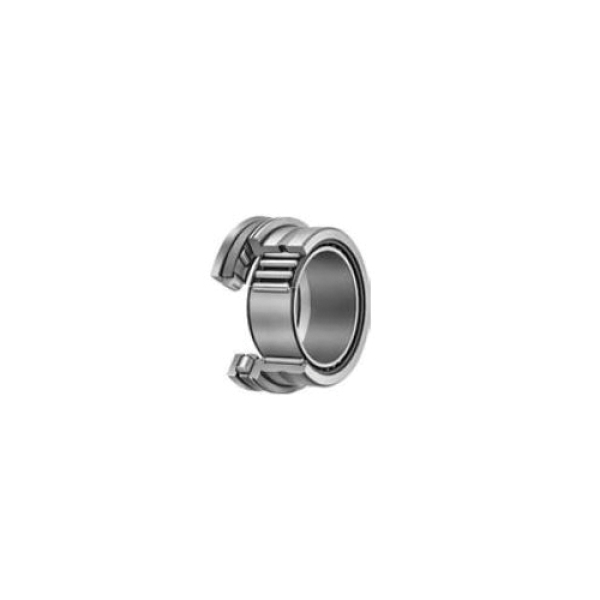

IKO NBX2030Z Combined Needle Roller Bearing With Thrust Roller Bearing and Dust Cover, 20 mm Dia Bore, 30 mm OD, 30 mm W, 17600 N Radial Dynamic/19000 N Axial Dynamic/25400 N Radial Static/48700 N Axial Static Load

  • Item#: NBX2030Z
  • Mfr#: NBX2030Z
  • UPC: 4549557046025
    • Minimal elastic deformation of rolling contact surfaces under load
    • High rotational accuracy for both horizontal and vertical shafts achieved by precisely finished thrust bearings
    • Dust cover is made of a thin steel plate and fixed to a groove on the outer ring collar
    • Without inner ring
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

IKO manufactures an economical series of Combined Needle Roller Bearings, comprised of both radial and thrust bearings. Caged needle roller bearings act as radial bearings, while thrust ball or roller bearings serve as thrust bearings. This series is available in four styles, including designs that incorporate thrust ball bearings, thrust roller bearings, angular contact ball bearings or three-point contact ball bearings. Applications include machine tools, textile equipment and industrial machinery. Needle roller bearings with thrust roller bearings are also designed for thrust loads, but feature higher axial load ratings than versions using thrust ball bearings.

IKO Combined Needle Roller Bearing, Series: NBX, 20 mm Bore, 30 mm OD, 30 mm Width, 17600 N Radial Dynamic/19000 N Axial Dynamic/25400 N Radial Static/48700 N Axial Static Load, 11000 rpm Maximum

SPECIFICATIONS

Series      :      NBX
Load Capacity      :      17600 N Radial Dynamic/19000 N Axial Dynamic/25400 N Radial Static/48700 N Axial Static
Maximum Speed      :      11000 rpm
Outside Diameter      :      30 mm
Width      :      30 mm
