NATA5914

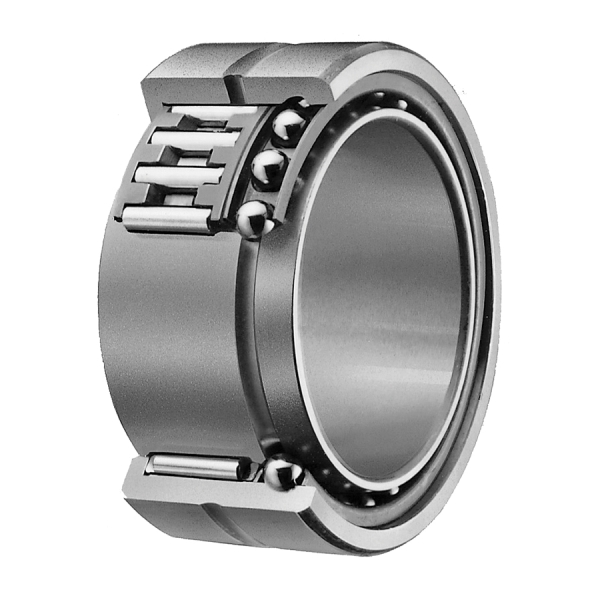

IKO NATA5914 Combined Needle Roller Bearing With Angular Contact Ball Bearing, 70 mm Dia Bore, 100 mm OD, 40 mm W, 56400 N Radial Dynamic/13500 N Axial Dynamic/127000 N Radial Static/35000 N Axial Static Load

  • Item#: NATA5914
  • Mfr#: NATA5914
  • UPC: 4549557045127
    • When the axial load exceeds 25% of the radial load, the radial load will be induced onto the angular contact ball bearing and the bearing life will be affected
    • Therefore, the relationship between the two loads must be carefully considered
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

IKO manufactures an economical series of Combined Needle Roller Bearings, comprised of both radial and thrust bearings. Caged needle roller bearings act as radial bearings, while thrust ball or roller bearings serve as thrust bearings. This series is available in four styles, including designs that incorporate thrust ball bearings, thrust roller bearings, angular contact ball bearings or three-point contact ball bearings. Applications include machine tools, textile equipment and industrial machinery. Needle roller bearings with angular contact ball bearings are designed to withstand heavy radial loads and unidirectional axial loads at the same time.

IKO Combined Needle Roller Bearing, Series: NATA, 70 mm Bore, 100 mm OD, 40 mm Width, 56400 N Radial Dynamic/13500 N Axial Dynamic/127000 N Radial Static/35000 N Axial Static Load, 5000 rpm Maximum

SPECIFICATIONS

Series      :      NATA
Load Capacity      :      56400 N Radial Dynamic/13500 N Axial Dynamic/127000 N Radial Static/35000 N Axial Static
Maximum Speed      :      5000 rpm
Outside Diameter      :      100 mm
Width      :      40 mm
