NART17UUR

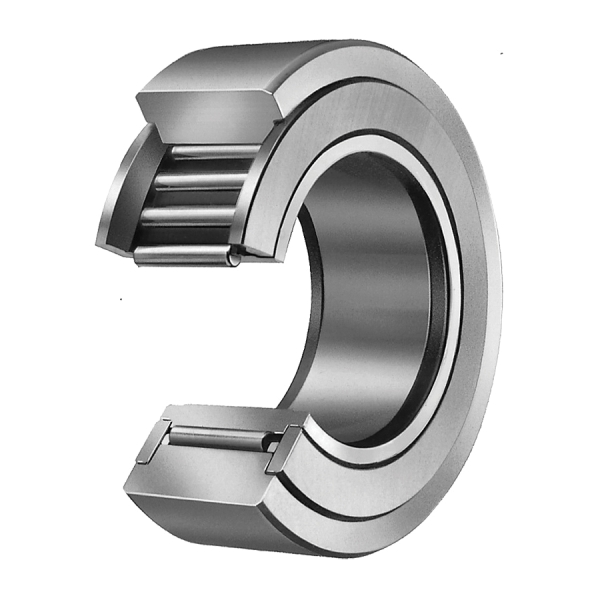

IKO NART17UUR Metric Series Caged Non-Separable Roller Follower With Crowned Outer Ring, Inner Ring and Oil Hole, 17 mm Dia Bore, 40 mm Dia x 20 mm W Roller, 17600 N Dynamic/21000 N Static Load, High Carbon Chrome Steel Roller
- CP#:
- Item#: NART17UUR
- Mfr#: NART17UUR
- UPC: 4549557043710
- Crowned outer rings that mitigate end loads due to installation errors
- Specifications for cam mechanisms and for linear guidance in conveying equipment
- Caged bearings feature a smaller coefficient of friction, ideal for high-speed rotation
- Non-separable followers feature press-fit end plates at both sides of the inner ring
- Sealed style features synthetic rubber seals to prevent dust and dirt from entering the bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
IKO manufacturers a variety of durable Roller Followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs. Outer rings run directly on mating track surfaces.
IKO Roller Follower, Caged Non-Separable, Series: NART Metric Series, 17 mm Bore, 40 mm Roller Diameter, 20 mm Roller Width, 21 mm Overall Width, 17600 N Dynamic/21000 N Static Load, Sealed Closure, -20 to 120 deg C, High Carbon Chrome Steel Roller
SPECIFICATIONS
| Series | : | NART Metric Series |
| Load Capacity | : | 17600 N Dynamic/21000 N Static |
| Roller Diameter | : | 40 mm |
| Roller Material | : | High Carbon Chrome Steel |
| Overall Width | : | 21 mm |
| Roller Width | : | 20 mm |
