NAF203517

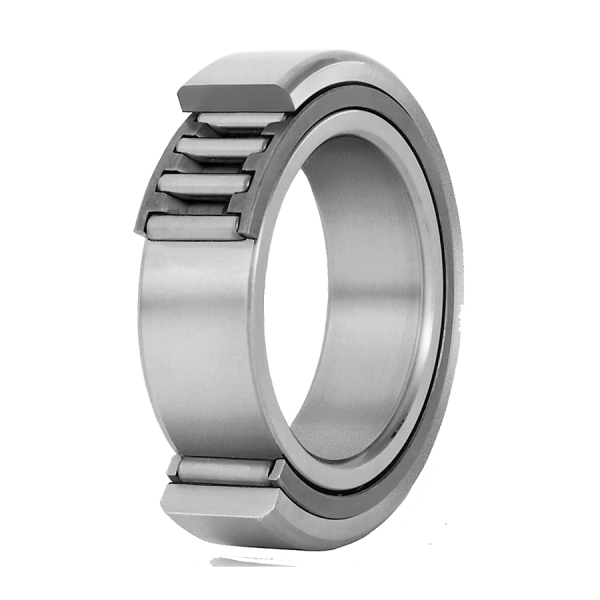

IKO NAF203517 Metric Series Caged Separable Needle Roller Bearing With Inner Ring, 20 mm Dia Bore, 35 mm OD, 1 Row, 17 mm W, 17300 N Dynamic/26600 N Static Load

  • Item#: NAF203517
  • Mfr#: NAF203517
  • UPC: 4549557061967
    • Without oil hole
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

IKO Needle Roller Bearings with separable cage, the inner ring, outer ring and IKO needle roller cage are combined and they can be separated easily. This type has a simple structure with high accuracy. In addition, the radial clearance can be freely chosen by selecting and combining these component parts. As needle roller cages are used, these bearings have excellent rotational performance. These bearings are most suitable for mass-production high accuracy products such as machine tools, textile machinery and printing machines.

IKO Needle Roller Bearing, Caged Separable, Series: NAF Metric Series, 20 mm Bore, 35 mm OD, 1 Row, 17 mm Width, 17300 N Dynamic/26600 N Static Load, High Carbon Steel Bearing, 20000 rpm Maximum

SPECIFICATIONS

Series      :      NAF Metric Series
Bearing Material      :      High Carbon Steel
Load Capacity      :      17300 N Dynamic/26600 N Static
Maximum Speed      :      20000 rpm
Outside Diameter      :      35 mm
Number of Rows      :      1
Width      :      17 mm
