RATIO 1:1 STYLE D,E 1.250" SHAFT SIZES

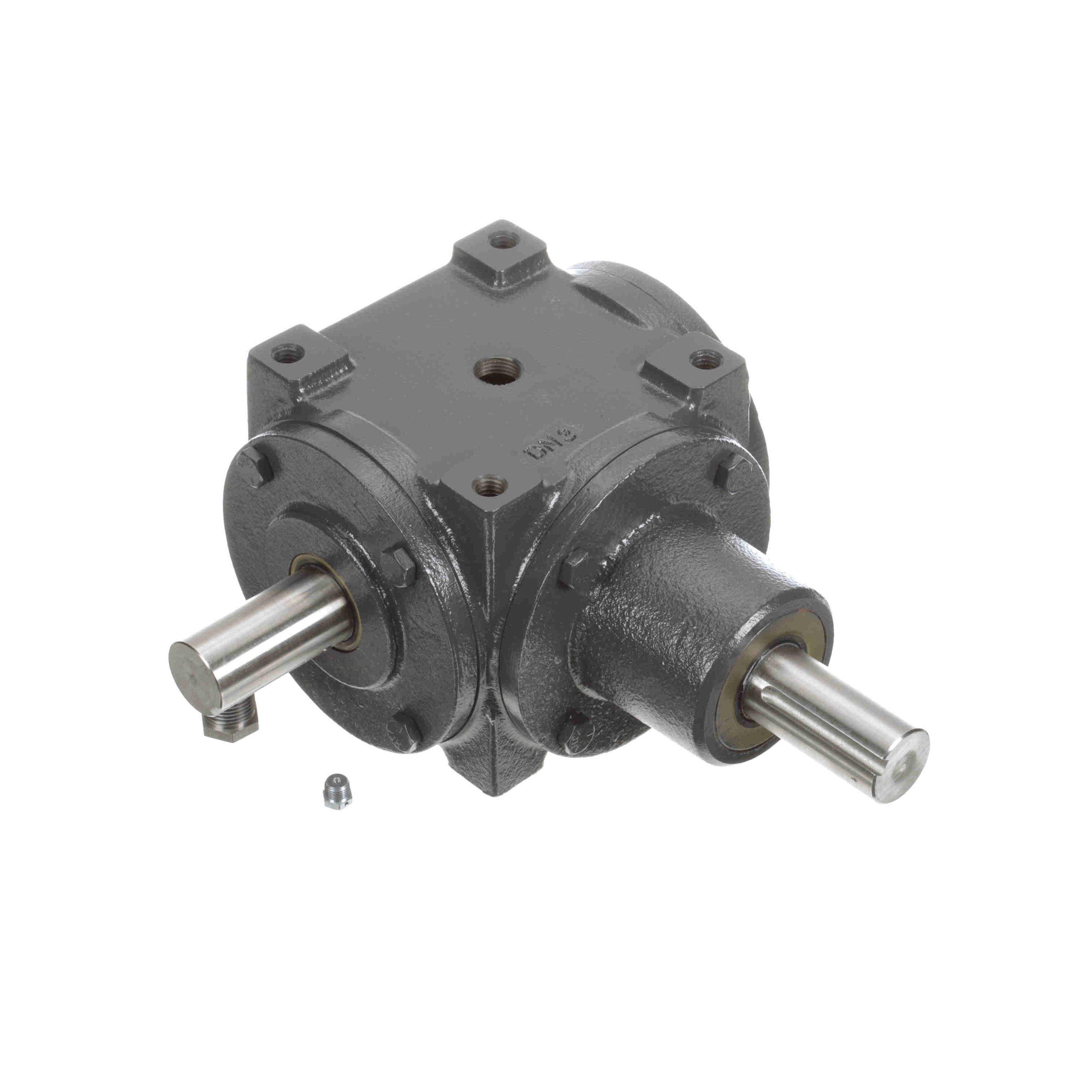

Hub City® 0220-03520 66 Series Right Angle Spiral Single Reduction Style D E Bevel Gear Reducer, Shaft Input, Shaft Output, 46 hp, 1:1 Gear, 1750 rpm Maximum Output, 1650 in-lb Torque Rating
- CP#:
- Item#: 0220-03520
- Mfr#: RATIO 1:1 STYLE D,E 1.250" SHAFT SIZES
- UPC: 662798006444
-
Rugged cast iron housingUniversal Mounting DimensionsSpiral Bevel (SP) or Straight Bevel (ST) gearingAlloy shaftingHeavy-duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style D E, Series: 66 Series, 1:1 Gear Ratio, 46 hp, Shaft Input, Shaft Output, 1-1/4 in Dia x 2-9/16 in L Input, 1-1/4 in Dia x 2-1/2 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1650 in-lb, 8-7/16 in Centre Distance, 1/4 x 1/8 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 11-1/4 in D x 5-5/8 in H
SPECIFICATIONS
| Series | : | 66 Series |
| Output Size | : | 1-1/4 in Dia x 2-1/2 in L |
| Input Size | : | 1-1/4 in Dia x 2-9/16 in L |
| Mounting Type | : | Four-Bolt Surface |
| Material | : | Cast Iron |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 1:1 |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Dimensions | : | 11-1/4 in D x 5-5/8 in H |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 1/4 x 1/8 in Input/Output |
| Type | : | Right Angle Spiral Single Reduction Style D E |
| Horsepower | : | 46 hp |
| Output Maximum Speed | : | 1750 rpm |
| Torque Rating | : | 1650 in-lb |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000101_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22003513_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Bevel_HCLI-BG-03.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4820/10075E_Hub_City_Engineering_Manual_No_8_Catalog_D24-25.pdf
