HUB CITY 134 20/1 B WR 56C

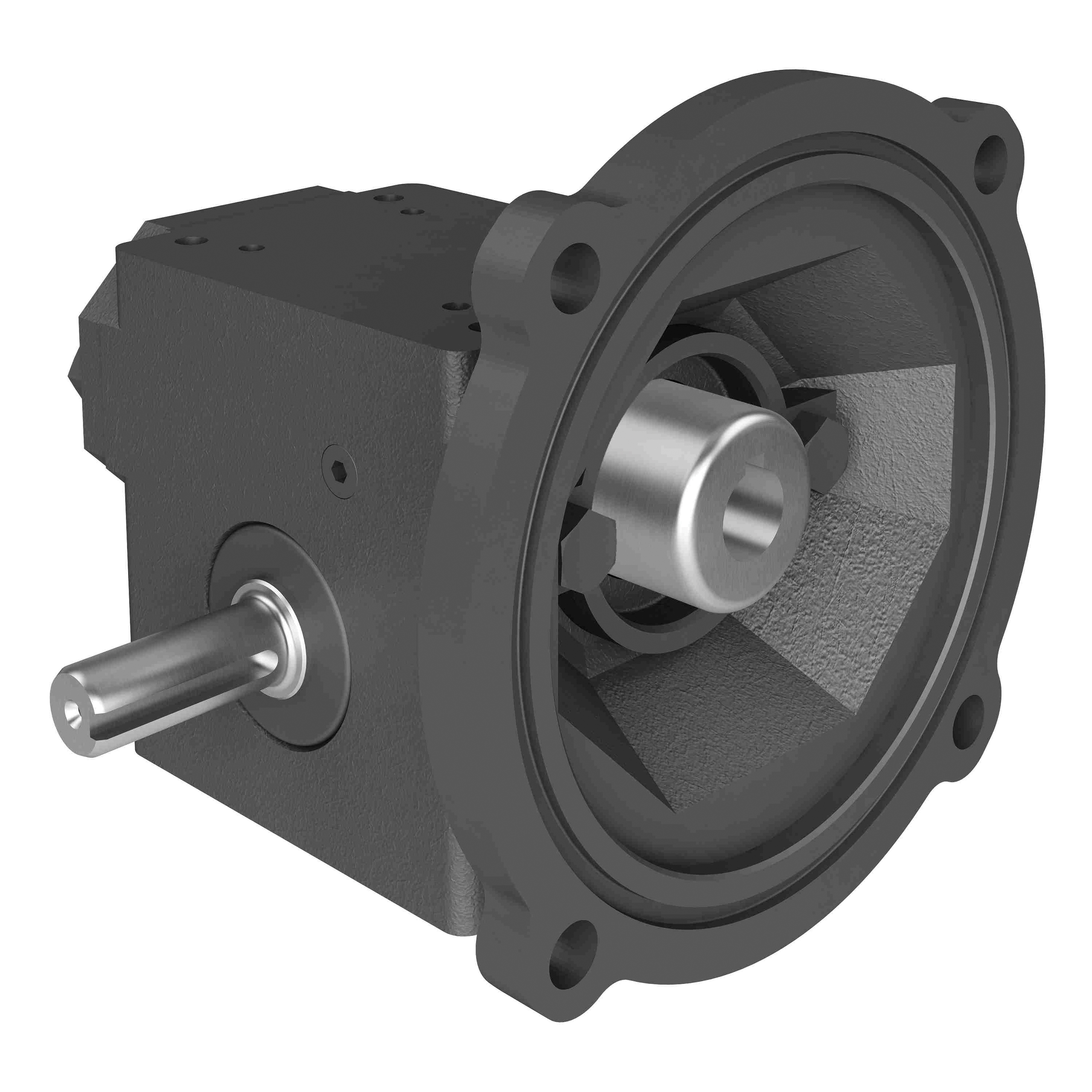

Hub City® PowerCubeX® 0230-00125 130PCX Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 0.51 hp Input, 20:1 Gear, 87.5 rpm Maximum Output, 275 in-lb Output Torque Rating
- CP#:
- Item#: 0230-00125
- Mfr#: HUB CITY 134 20/1 B WR 56C
- UPC: 662961813534
-
Modular DesignUniversal Mounting DimensionsIncreased thermal capacity and Increased efficiencyCast iron housingAlloy shaftingViton® seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 130PCX, 20:1 Gear Ratio, 0.51 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 0.625 in Dia x 1.69 in L Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 275 in-lb Output, 1.33 in Centre Distance, 3/16 x 3/32 in Output Keyway, 74.8 % Efficiency, Conventional Oil Lubrication, Cast Iron
SPECIFICATIONS
| Frame Size | : | 56C |
| Input Size | : | 5/8 in Dia |
| Material | : | Cast Iron |
| Output Size | : | 0.625 in Dia x 1.69 in L |
| Series | : | 130PCX |
| Input Type | : | C-Face Quill |
| Output Type | : | Shaft |
| Gear Ratio | : | 20:1 |
| Type | : | Right Angle Single Reduction Style B |
| Efficiency | : | 74.8 % |
| Keyway Size | : | 3/16 x 3/32 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Conventional Oil |
| Horsepower | : | 0.51 hp Input |
| Output Maximum Speed | : | 87.5 rpm |
| Torque Rating | : | 275 in-lb Output |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_23000079_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_23033735_Manual.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Worm_LI-WG-S-D-071814.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4821/10075E_Hub_City_No_8_Single_Reduction_134_series.pdf
