Hub City® HERA45ES 39.98 56C 1.000
Hub City®

Hub City® HERA45ES 39.98 56C 1.000

loading
Hub City®

HERA45ES 39.98 56C 1.000

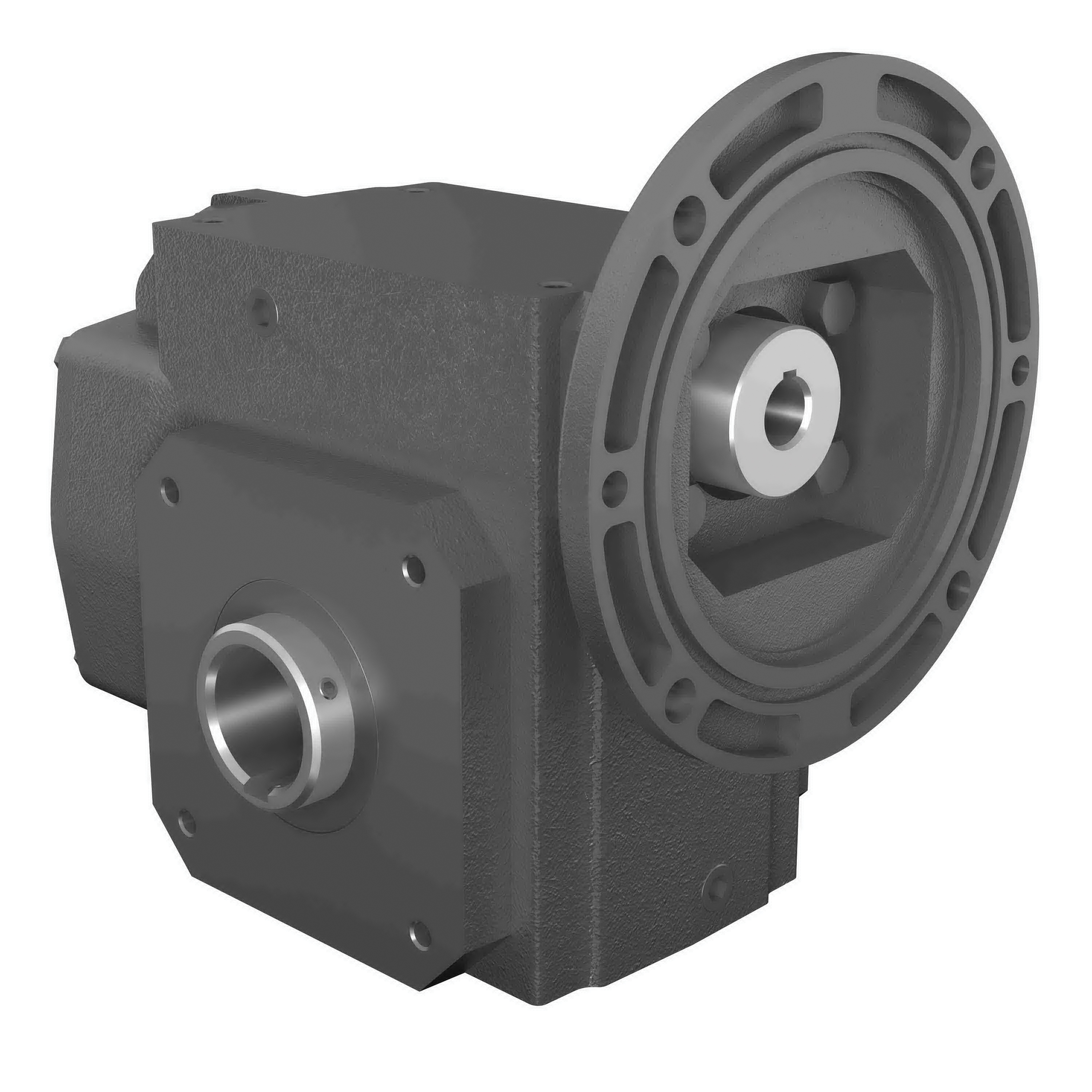

Hub City® 0250-54006 HERA®45 Double Reduction High Efficiency Right Angle Helical Hypoid Reducer, C-Face Quill Input, Hollow Bore Output, 2.01 hp, 39.98:1 Gear, 43.8 rpm Maximum Output, 2600 in-lb Torque Rating

  • Item#: 0250-54006
  • Mfr#: HERA45ES 39.98 56C 1.000
  • UPC: 662798733128
    90% Efficiency-Up to 2x TorqueFour sizes can replace up to twelve sizes of worm speed reducersCast iron housingRolling action gearing (helical and hypoid)Over-sized bearingsViton® sealsBronze bushing quill linerFactory lubricated with Food Grade synthetic lubricant - USDA H1HubLoc® keyless bushing system is available on hollow output bore HERA gear drives.
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®45, 39.98:1 Gear Ratio, 2.01 hp, C-Face Quill Input, Hollow Bore Output, 0.626 in Dia Input, 1 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2600 in-lb, 3.263 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, Cast Iron, 8 in L x 6.25 in W x 6.938 in H

SPECIFICATIONS

Centre Distance      :      3.263 in
Dimensions      :      8 in L x 6.25 in W x 6.938 in H
Efficiency      :      90 %
Input Maximum Speed      :      1750 rpm
Input Size      :      0.626 in Dia
Keyway Size      :      3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type      :      PAG Synthetic Oil
Material      :      Cast Iron
Output Size      :      1 in Dia
Rotation Type      :      CCW/CW
Series      :      HERA®45
Type      :      Double Reduction High Efficiency Right Angle
Input Type      :      C-Face Quill
Output Type      :      Hollow Bore
Horsepower      :      2.01 hp
Gear Ratio      :      39.98:1
Output Maximum Speed      :      43.8 rpm
Torque Rating      :      2600 in-lb

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Catalog.pdf
  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Manual.pdf
  • pdf
    Manual
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation%20Manual_Hub_City_HERA_HCLI-10-A.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4821/10075E_Hub_City_No_8_HERA35-45_series.pdf
