- Hub City® 324 60/1 A WR 143TC GEARBOX
324 60/1 A WR 143TC GEARBOX

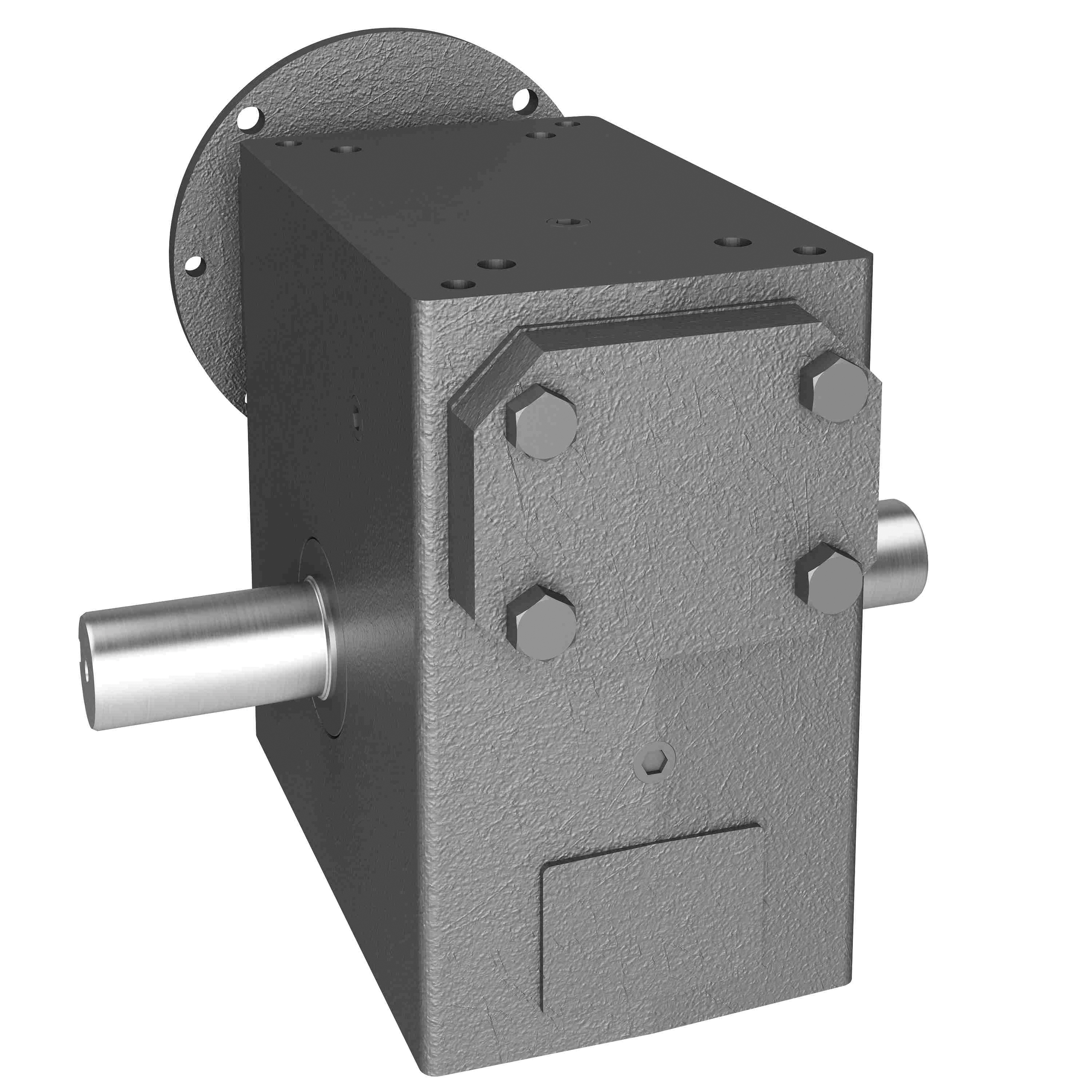

Hub City® PowerCubeX® 0230-14802 320PCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Shaft Output, 1.85 hp Input, 60:1 Gear, 29.2 rpm Maximum Output, 2706 in-lb Output Torque Rating
- CP#:
- Item#: 0230-14802
- Mfr#: 324 60/1 A WR 143TC GEARBOX
- UPC: 662798969114
-
Modular DesignUniversal Mounting DimensionsIncreased thermal capacity and Increased efficiencyCast iron housingAlloy shaftingViton® seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 320PCX, 60:1 Gear Ratio, 1.85 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.375 in Dia x 2.84 in L Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2706 in-lb Output, 3-1/4 in Centre Distance, 5/16 x 5/32 in Output Keyway, 67.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 10.88 in W
SPECIFICATIONS
| Frame Size | : | 140TC |
| Input Size | : | 7/8 in Dia |
| Material | : | Cast Iron |
| Output Size | : | 1.375 in Dia x 2.84 in L |
| Series | : | 320PCX |
| Input Type | : | C-Face Quill |
| Output Type | : | Shaft |
| Gear Ratio | : | 60:1 |
| Type | : | Right Angle Single Reduction Style A |
| Dimensions | : | 10.88 in W |
| Efficiency | : | 67.8 % |
| Keyway Size | : | 5/16 x 5/32 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Conventional Oil |
| Horsepower | : | 1.85 hp Input |
| Output Maximum Speed | : | 29.2 rpm |
| Torque Rating | : | 2706 in-lb Output |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_23009265_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_23033735_Manual.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Worm_LI-WG-S-D-071814.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4821/10075E_Hub_City_No_8_Single_Reduction_304_series.pdf
