0250-56820

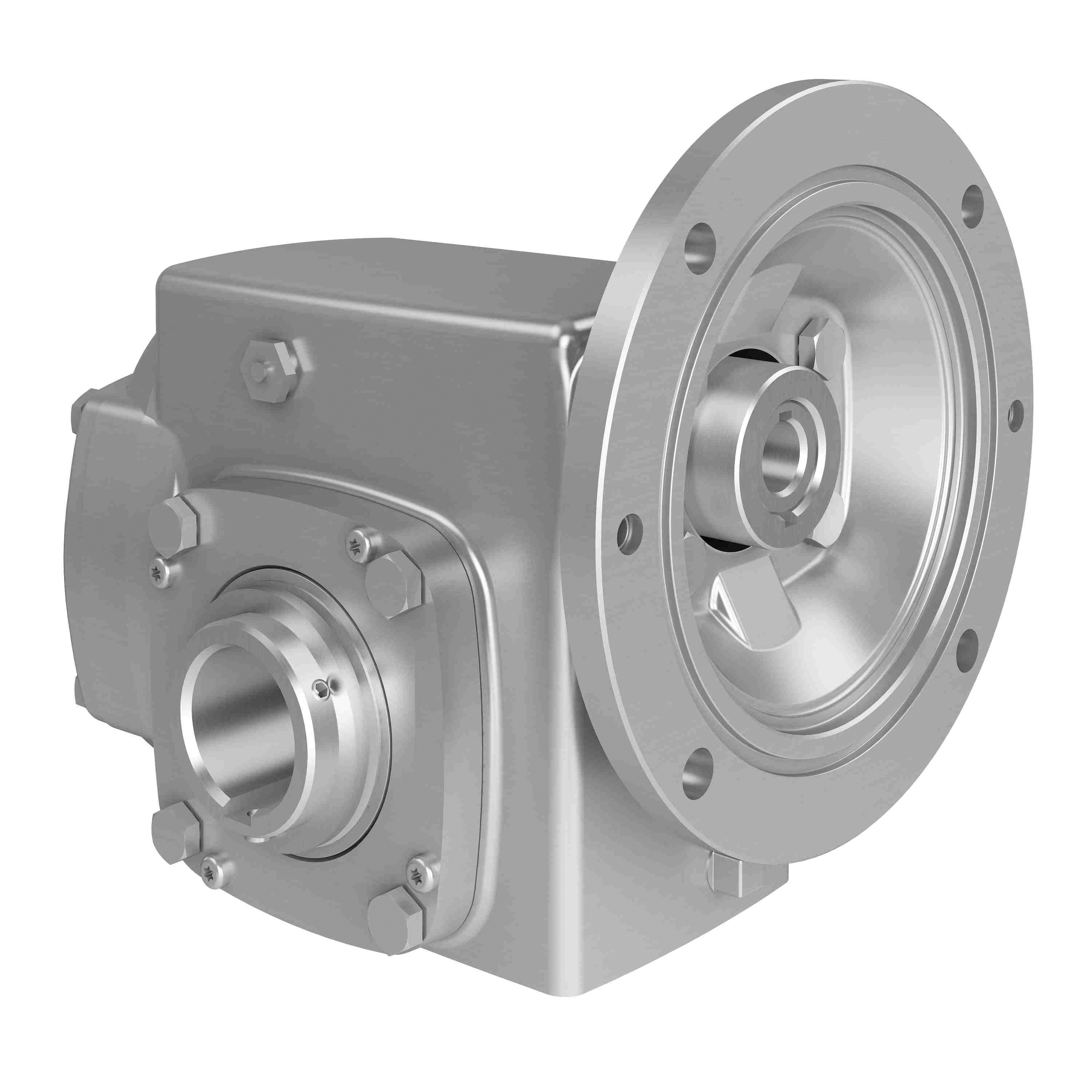

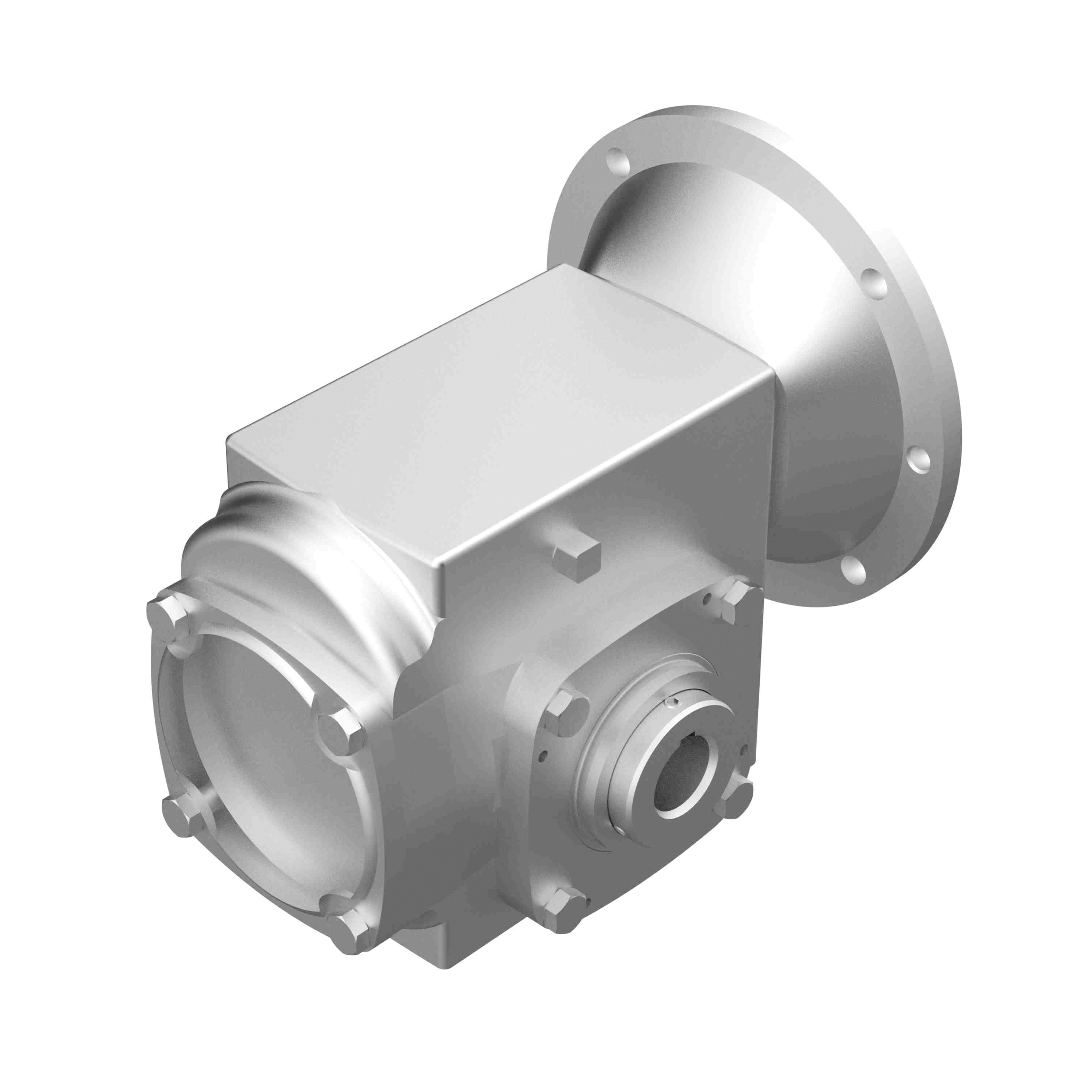

Hub City® CleanLine™ 0250-56820 SSHERA®35 Double Reduction High Efficiency Right Angle Helical Hypoid Reducer, C-Face Quill Input, Hollow Bore Output, 1.7 hp, 19.93:1 Gear, 87.8 rpm Maximum Output, 1100 in-lb Torque Rating
- CP#:
- Item#: 0250-56820 HUB CITY
- Mfr#: 0250-56820
- UPC: 662798939919
- 90% efficiency up to 2x torque
- Two sizes can replace up to six sizes of worm speed reducers
- Machine polished 316 stainless steel housing
- Rolling action gearing (helical and hypoid)
- Oversized bearings
- FKM seals
- Bronze bushing quill liner
- Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® CleanLine™ Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: SSHERA®35, 19.93:1 Gear Ratio, 1.7 hp, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1 in Dia Output, 87.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1100 in-lb, 2.509 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 7.2 in L x 6 in W x 5.93 in H
SPECIFICATIONS
| Material | : | 316 Stainless Steel |
| Output Size | : | 1 in Dia |
| Input Size | : | 5/8 in Dia |
| Series | : | SSHERA®35 |
| Input Type | : | C-Face Quill |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 19.93:1 |
| Rotation Type | : | CCW/CW |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/16 x 3/32 in Input, 1/4 x 1/8 in Output |
| Type | : | Double Reduction High Efficiency Right Angle |
| Lubrication Type | : | PAG Synthetic Oil |
| Dimensions | : | 7.2 in L x 6 in W x 5.93 in H |
| Efficiency | : | 90 % |
| Finish | : | Polished |
| Horsepower | : | 1.7 hp |
| Output Maximum Speed | : | 87.8 rpm |
| Torque Rating | : | 1100 in-lb |
