- Hub City® 0250-56506
0250-56506

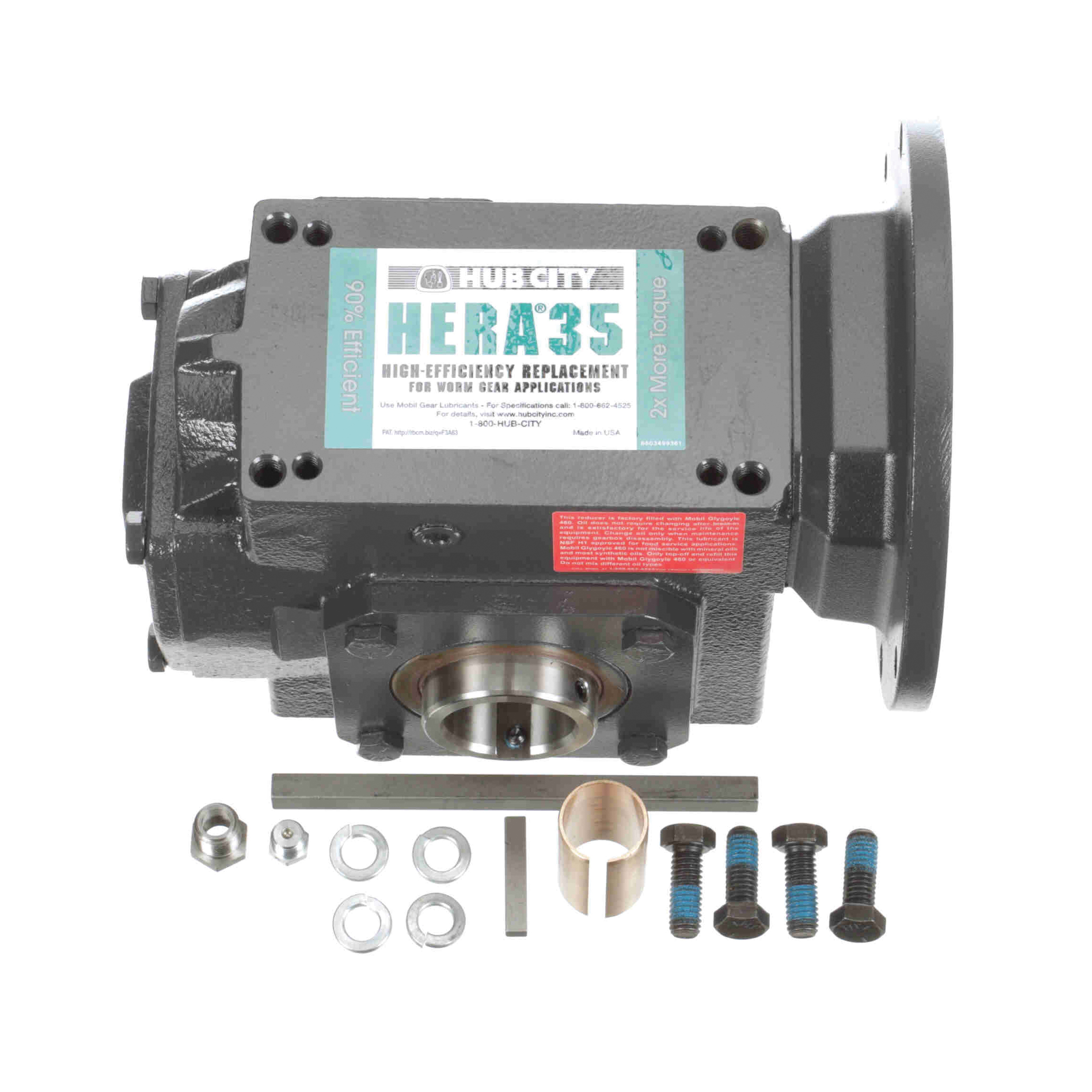

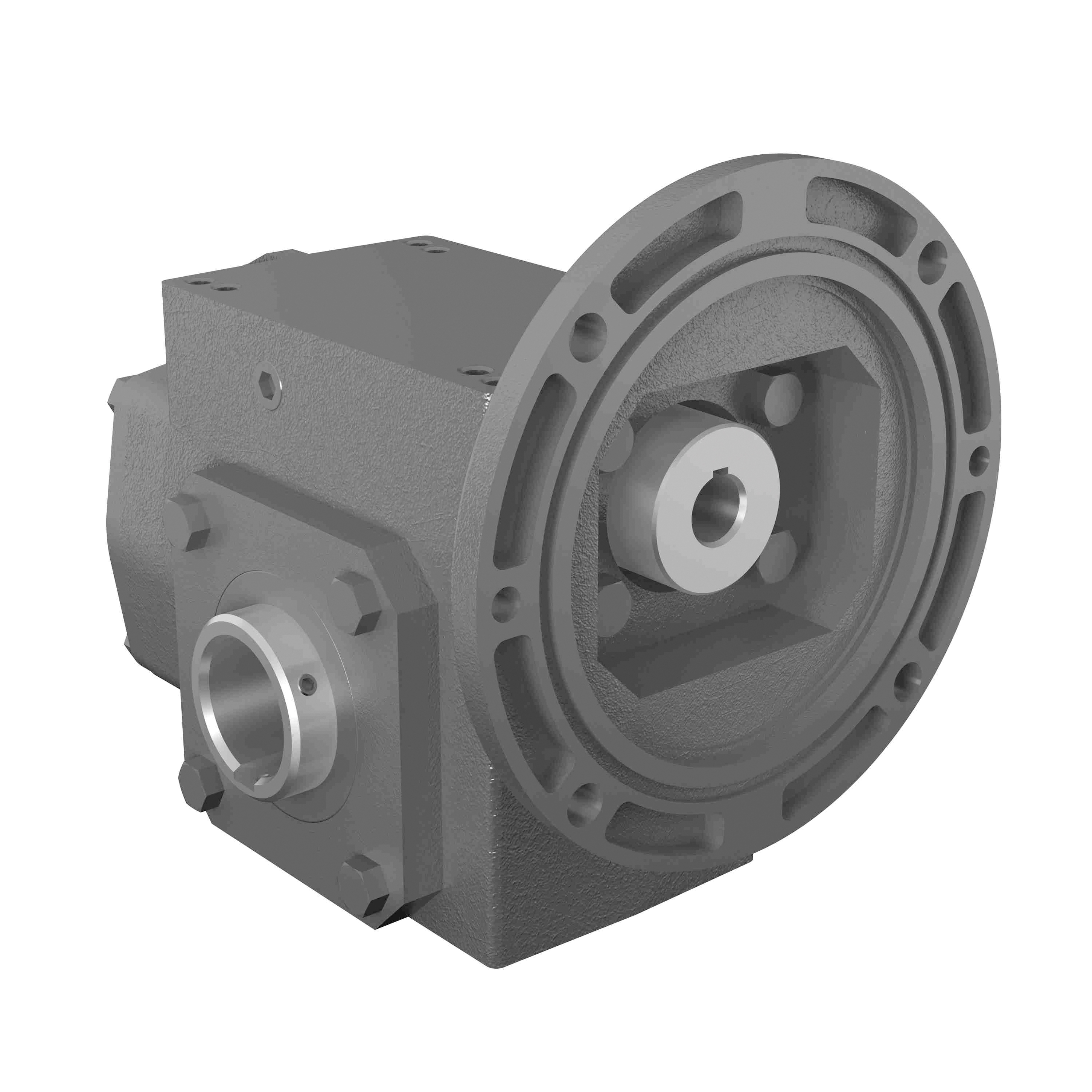

Hub City® 0250-56506 HERA®35 Double Reduction High Efficiency Right Angle Helical Hypoid Reducer, C-Face Quill Input, Hollow Bore Output, 2.97 hp, 11.42:1 Gear, 153.2 rpm Maximum Output, 1100 in-lb Torque Rating
- CP#:
- Item#: 0250-56506 HUB CITY
- Mfr#: 0250-56506
- UPC: 662798806327
- 90% efficiency up to 2x torque
- Four sizes can replace up to eleven sizes of worm speed reducers
- Rolling action gearing (helical and hypoid)
- Oversized bearings
- FKM seals
- Bronze bushing quill liner
- Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®35, 11.42:1 Gear Ratio, 2.97 hp, C-Face Quill Input, Hollow Bore Output, 0.876 in Dia Input, 1.438 in Dia Output, 153.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1100 in-lb, 2.509 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW, PAG Synthetic Oil Lubrication, Cast Iron, 7.19 in L x 5.5 in W x 5.75 in H
SPECIFICATIONS
| Material | : | Cast Iron |
| Output Size | : | 1.438 in Dia |
| Input Size | : | 0.876 in Dia |
| Series | : | HERA®35 |
| Input Type | : | C-Face Quill |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 11.42:1 |
| Rotation Type | : | CCW/CW |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/16 x 3/32 in Input, 3/8 x 1/8 in Output |
| Type | : | Double Reduction High Efficiency Right Angle |
| Lubrication Type | : | PAG Synthetic Oil |
| Centre Distance | : | 2.509 in |
| Dimensions | : | 7.19 in L x 5.5 in W x 5.75 in H |
| Efficiency | : | 90 % |
| Horsepower | : | 2.97 hp |
| Output Maximum Speed | : | 153.2 rpm |
| Torque Rating | : | 1100 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Manual.pdf -
